Understanding the Role of Torque in Flange Installation
Torque is an important factor in flange installation and it is important that it is understood in order to avoid common mistakes
Torque is the force that is used to rotate the bolts on a flange in order to tighten it. For the threaded flanges, the bolts require to be tightened to a certain torque in order to have a seal between the flanges and the pipe. If the torque is low it results in a loose connection which may result in leakage while if the torque is high it may lead to damage to the flange, the bolts or even the entire assembly

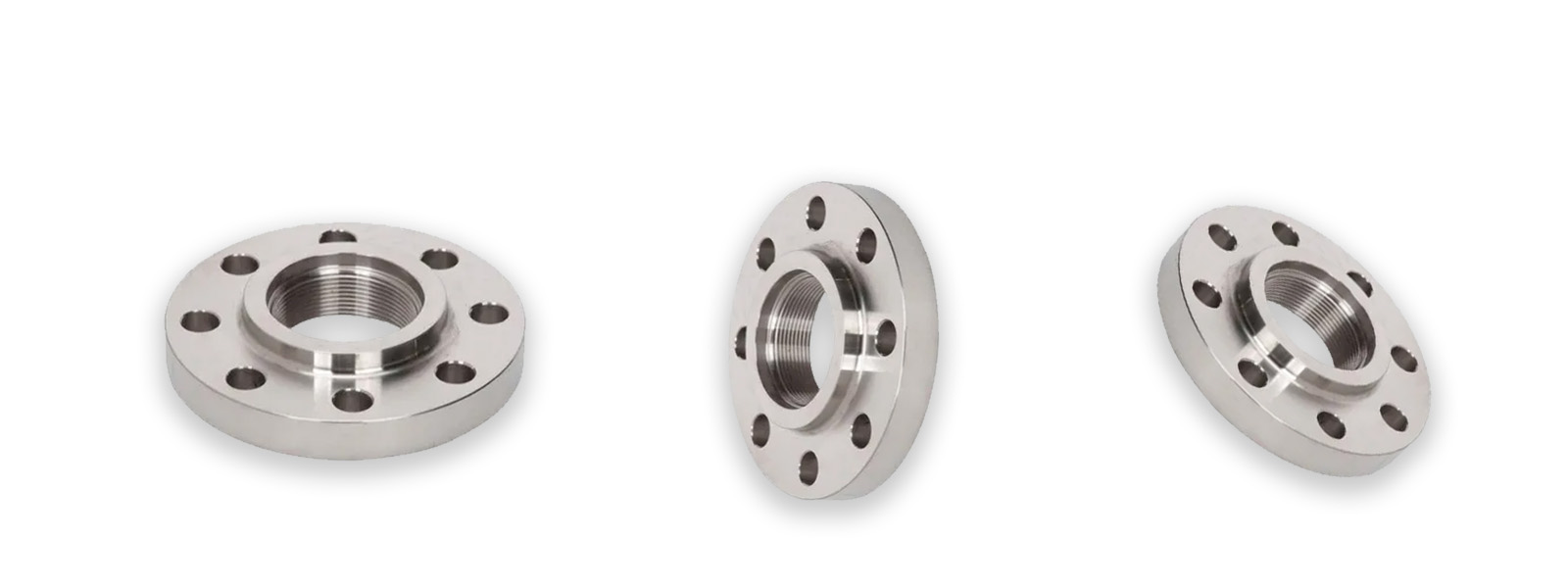

When using Super Duplex Threaded Flanges, the right torque ensures that the gasket between the flanges is compressed evenly thus resulting in a good seal. This assists in preventing circumstances where fluids or gases may seep and this can be very dangerous and costly in industries. Moreover, the proper utilization of torque helps in the load bearing on the flange without straining the flange or the bolts hence avoiding bolt fatigue
The Consequences of Incorrect Torque Application
Incorrect torque application can have severe consequences, especially when dealing with high-performance materials like Super Duplex Threaded Flanges. Here are some potential issues that can arise
- Leakage : As explained above, low torque leads to the formation of a weak seal that will lead to the leakage of fluids or gases. In some industries for instance the oil and gas industry, even a small leakage can lead to a lot of losses and pollution.
- Flange Damage : If the bolts are over-tightened then the flange may be distorted or in extreme cases even crack. This not only reduces the bond between two people but may also cost a lot of money to repair or even to replace.
- Bolt Failure : Applying high force may lead to the pulling or snapping of the bolts and consequently lead to the failure of the flange joint. This is especially so in high-pressure systems where a failure may lead to a hazardous condition taking over.
- Uneven Load Distribution : An incorrect torque can cause the gasket to be compressed unevenly and this applies an unbalanced force on the flange. This can cause flange distortion which may require expensive repair time hence increasing the cost of production
Best Practices for Torque Application in Super Duplex Threaded Flanges
In order to prevent the problems described above, it is necessary to adhere to the guidelines when applying torque to Threaded Flanges. Here are some key steps to ensure proper installation
- Use a Torque Wrench : It is always recommended to use a calibrated torque wrench in order to tighten the bolts to the right amount of torque. It also offers a precise method of regulating the amount of force that is used in tightening the Super Duplex Threaded Flange as recommended by the manufacturer.
- Follow a Torque Sequence : Tighten the bolt's star-like beginning with the first bolt and then the bolt which is diagonally opposite to it. This sequence also helps in the reduction of load on the flange and thereby helps in minimizing the possibility of the flange getting deformed.
- Apply Torque in Stages : Do not apply the final torque to each bolt in one go, but apply the torque in stages. Begin with a low torque value, and then increase the torque gradually in steps until the final torque is attained. This approach assists in achieving an even compression of the gasket.
- Check the Gasket : Before tightening the bolts, check that the gasket is correctly positioned and properly located between the two flanges. A gasket that is not properly placed will cause leakage, despite the fact that the correct torque has been applied.
- Regular Maintenance : Even after installation, it’s essential to regularly check the torque on the flange bolts. Over time, bolts can loosen due to vibrations or thermal expansion, so periodic retightening may be necessary to maintain a secure connection
The Role of Super Duplex Threaded Flanges in Industrial Applications

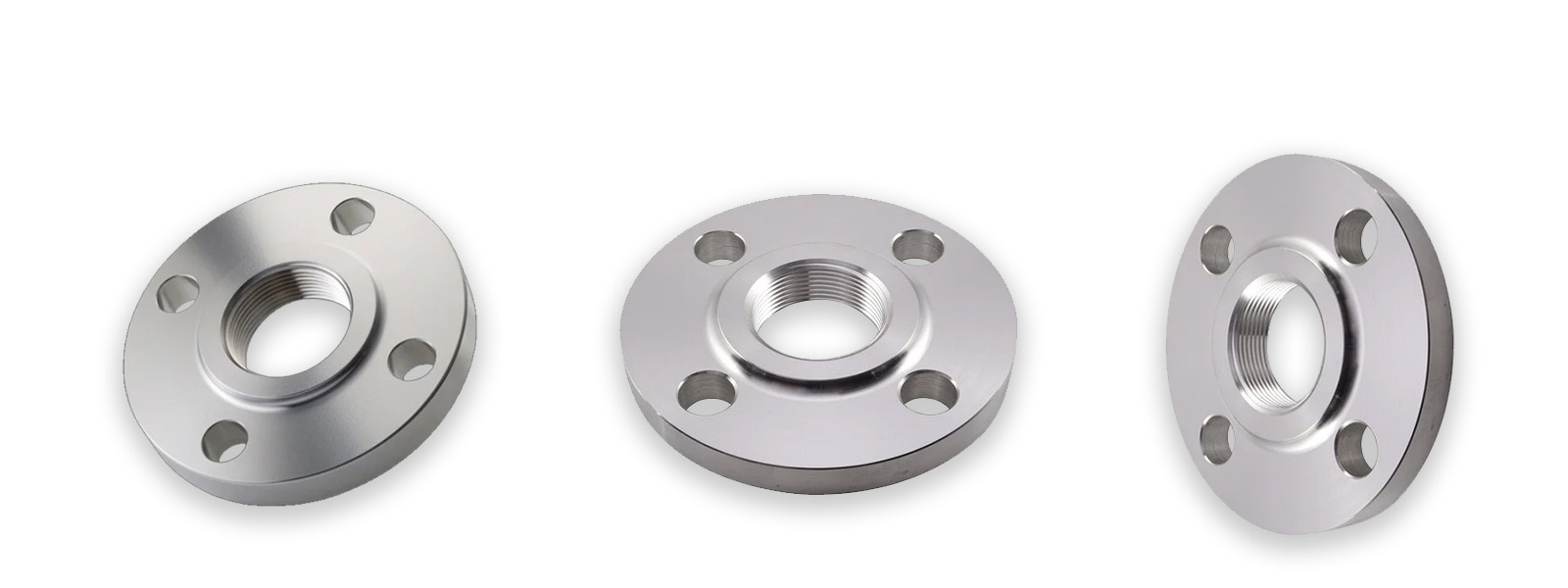

Super Duplex Threaded Flanges are highly appreciated for their high tensile strength, corrosion resistance and their suitability to work under high temperature and pressure conditions. These qualities make them suitable for use in applications where high standards are required such as in the oil and gas, chemical processing and marine industries
Being a prominent exporter of Super Duplex Threaded Flange, EBY Fittings knows the needs of industries that demand high-quality flanges that fit their specific requirement. However, even the best flanges need to be installed in the right manner; the right amount of torque has to be applied to the flanges
Conclusion
Proper torque application is not just a technical detail; it’s a critical factor in the successful installation of Super Duplex Threaded Flanges. By following best practices and using the right tools, you can ensure a leak-proof, reliable connection that will stand the test of time
Whether you’re an engineer, installer, or purchasing manager, understanding the importance of torque in flange installation can help you avoid costly mistakes and ensure the safety and efficiency of your piping systems. And when it comes to sourcing high-quality Flanges, trust a reputable Super Duplex Threaded Flange manufacturer like EBY Fittings to deliver the products you need for your next project
You can Contact EBY Fittings today at inquiry@ebyfasteners.com to know more about the Super Duplex Threaded Flanges and their use in various industrial projects
