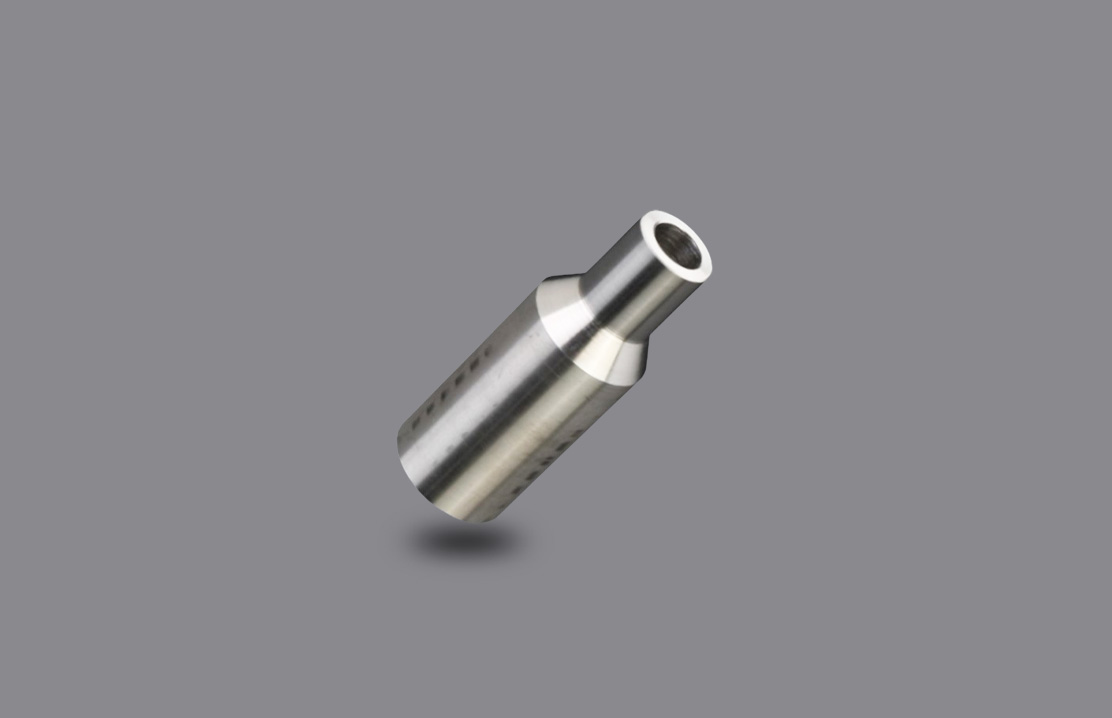

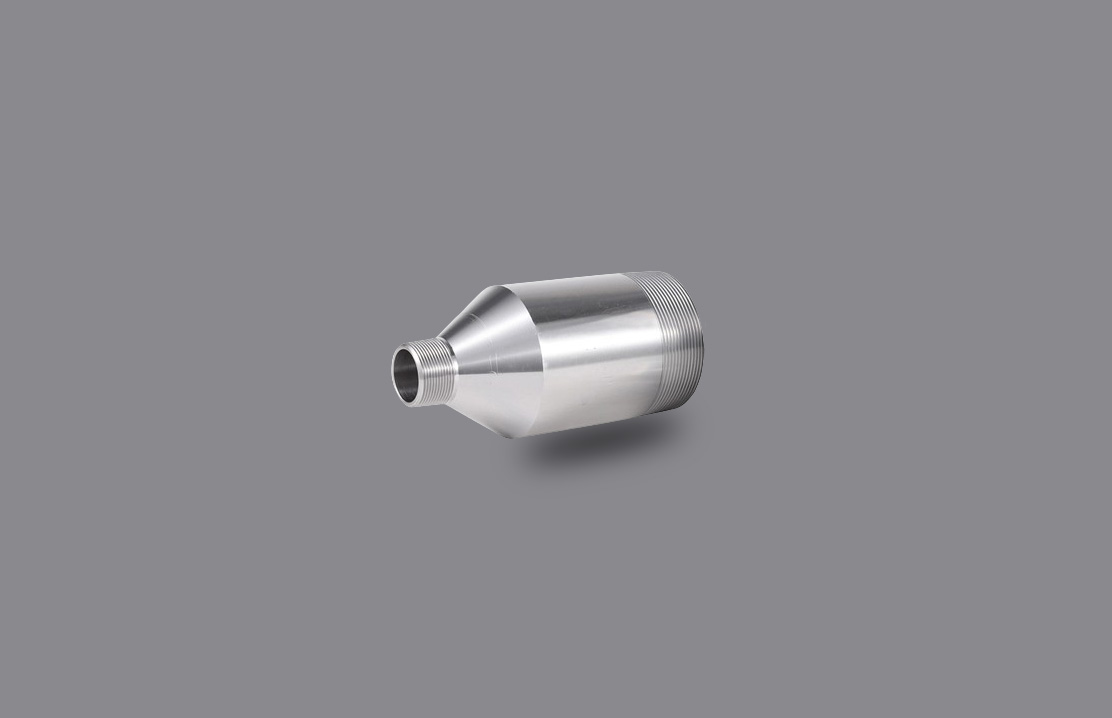

Alloy Steel Swage Nipple
EBY Fasteners specializes in high-quality Alloy Steel Swage Nipple, and essential fittings for a variety of industrial pipework applications. These swage Nipple provide reliable and secure connections between pipes of different diameters. They are available in concentric and eccentric variations to accommodate diverse piping configurations
Constructed from robust alloy steel, these swage Nipple offer excellent resistance to corrosion, wear, and high pressures. EBY Fasteners employs meticulous manufacturing processes and stringent quality control measures, ensuring these Nipple meet industry standards and provide long-lasting performance. Their alloy steel construction grants them exceptional durability in demanding environments
Clients can choose from a range of sizes, thread types (including NPT and BSPT), and pressure ratings to suit their specific piping system requirements. EBY Fasteners also provides customization options to cater to unique project needs. These Alloy Steel Swage Nipple by EBY Fasteners are an excellent choice for applications in oil & gas, petrochemical, power generation, and numerous other industrial sectors
Clients can choose from a range of sizes, thread types (including NPT and BSPT), and pressure ratings to suit their specific piping system requirements. EBY Fasteners also provides customization options to cater to unique project needs. These Alloy Steel Swage Nipple by EBY Fasteners are an excellent choice for applications in oil & gas, petrochemical, power generation, and numerous other industrial sectors
- ASTM / ASME A 182 : This is a foundational standard covering forged or rolled alloy and stainless steel parts for piping systems where pressure and temperature are concerns. It defines various grades of steel (like those listed below) suitable for different conditions. Swage Nipple made to this standard are meant for demanding applications.
- ASTM / ASME A 335 GR P 1 : This spec focuses on seamless ferritic alloy steel pipe optimized for high-temperature service. Think of power plants or refineries where hot fluids are being transported – those pipes might be made of P1 grade steel. A swage nipple in this material would be used to transition pipe sizes in such a system.
- ASTM / ASME A 335 GR P 5 : This grade is a chromium-molybdenum alloy steel also designed for elevated temperatures. It has better strength at high temperatures than P1, so it might be found in even more critical parts of a refinery process.
- ASTM / ASME A 335 GR P 9 : P9 steel, another chromium-molybdenum blend, further increases strength and creep resistance (resistance to deformation over time at high heat). You might see this used in highly specialized parts of power generation or chemical processing where both heat and pressure are extreme.
- ASTM / ASME A 335 GR P 11 : This grade (along with the similar P22) is common in power plant piping systems. These chromium-molybdenum steels have the right balance of strength, temperature resistance, and affordability for many high-pressure steam applications
- Manufacturing Standards : Alloy steel swage Nipple are typically manufactured according to widely recognized standards such as ASTM / ASME A182 (for general high-pressure/temperature fittings), MSS SP-95 (specifically for swage Nipple), or BS 3799 (British Standard). These standards ensure the fittings meet dimensional, material, and quality requirements.
- Materials : The choice of material is critical for alloy steel swage Nipple. Common carbon steels like ASTM A105 and A234 WPB offer strength and affordability. Alloy steels (ASTM A335 P grades, A182 F11, F22, etc.) provide enhanced properties for high temperatures or corrosive environments. Stainless steels (ASTM A182 F304/L, F316/L) excel in resisting corrosion. In extreme applications, specialized alloys like Duplex, Super Duplex, or Nickel alloys might be used.
- Dimensions : Alloy steel swage Nipple are specified in terms of Nominal Pipe Size (NPS), typically from 1/8" to 8" or larger. Thread types are either NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper). The wall thickness, referred to as the Schedule (e.g., Schedule 40, 80), determines the pressure rating of the swage nipple.
- Type : Concentric swage Nipple have the same diameter at both ends for straight pipe reductions. Eccentric swage Nipple offer a diameter change with an offset, allowing for adjustments in pipe alignment.
- Pressure Rating : Depending on the material, wall thickness, and design, alloy steel swage Nipple are commonly available in pressure ratings of 3000 PSI, 6000 PSI, or even higher for demanding applications.
- Additional Specifications : End finishes (plain, beveled, or threaded), heat treatment requirements, and testing/inspection standards may also be specified for alloy steel swage Nipple to ensure they meet specific project needs
- High-Quality Materials : Swage Nipple are crafted from a wide range of materials, including carbon steel, stainless steel, alloy steel, and more, ensuring compatibility with various operating conditions and fluids.
- Precision Engineering : Swage nipple forged fittings undergo precision machining and forging processes, resulting in accurate dimensions, smooth surfaces, and tight tolerances. This guarantees a reliable and leak-free connection in critical applications.
- Corrosion Resistance : The choice of materials and surface treatments ensures excellent corrosion resistance, making swage Nipple suitable for harsh environments and corrosive fluids commonly found in industries like Chemical, Petrochemical, and Fertilizer.
- High Pressure and Temperature Performance : Designed to withstand high pressures and temperatures, swage Nipple provide robust performance, making them ideal for applications in Oil & Gas, Energy & Power, and Nuclear Power industries.
- Versatility : With options for threaded or socket-weld configurations and various sizes and schedules, swage Nipple can be customized to meet specific project requirements across industries
- Refinery & Petrochemical : Swage Nipple are used in high-pressure systems like refineries and petrochemical plants. They are capable of withstanding high pressure, making them highly effective even when dealing with highly pressurized fluids or gases.
- Chemical : In the chemical industry, swage Nipple are used to join hollow tubing within fluid transfer systems, allowing different parts containing liquids or gases to be connected quickly and securely.
- Oil & Gas : Swage Nipple play a crucial role in oil and gas exploration, production, refining, and distribution, handling the challenges of high pressure and corrosive environments.
- Power Plant : In compressor designs and turbine applications for steam power generation, swage Nipple find utility as joints between multiple components.
- Offshore Platforms : Swage Nipple are used in offshore platforms for connecting pipes of different sizes, facilitating the transition between different pipe sizes or types.
- Ship Building : In the shipbuilding industry, swage Nipple are used for establishing a steadfast and leak-free linkage between two separate pipes.
- Industrial Machineries : Swage Nipple are used to connect various types of machinery to a piping system, including pumps, compressors, and filters.
- Pharmaceuticals : In the pharmaceutical industry, swage Nipple are used to minimize dead legs or trapped pockets through their design. This is because swage Nipple have smooth internal surfaces that minimize turbulence and other disruptions to the fluid flow.
- Pumps & Compressor : Swage Nipple are used in pump and compressor designs for connecting multiple components.
- Dairy & Food : In the dairy and food industry, swage Nipple are used in fluid transfer systems, allowing different parts containing liquids or gases to be connected quickly and securely.
- Sugar Mills : Swage Nipple are used in sugar mills for connecting pipes of different sizes, facilitating the transition between different pipe sizes or types.
- Textile Machineries : In textile machinery, swage Nipple are used for connecting pipes of different sizes, facilitating the transition between different pipe sizes or types.
- Fertilizers & Pesticides : In the fertilizer and pesticide industry, swage Nipple are used for connecting pipes of different sizes, facilitating the transition between different pipe sizes or types
Chemical Composition
| Element | Composition |
|---|---|
| Carbon (C) | 0.03 Max |
| Manganese (Mn) | 0.29 - 1.06 |
| Phosphorus (P) | 0.05 Max |
| Sulfur (S) | 0.058 Max |
| Silicon (Si) | 0.10 Max |
| Chromium (Cr) | 0.40 Max |
| Molybdenum (Mo) | 0.15 Max |
| Nickel (Ni) | 0.40 Max |
| Copper (Cu) | 0.40 Max |
| Vanadium (V) | 0.08 Max |
| Niobium (Cb) | 0.02 Max |
