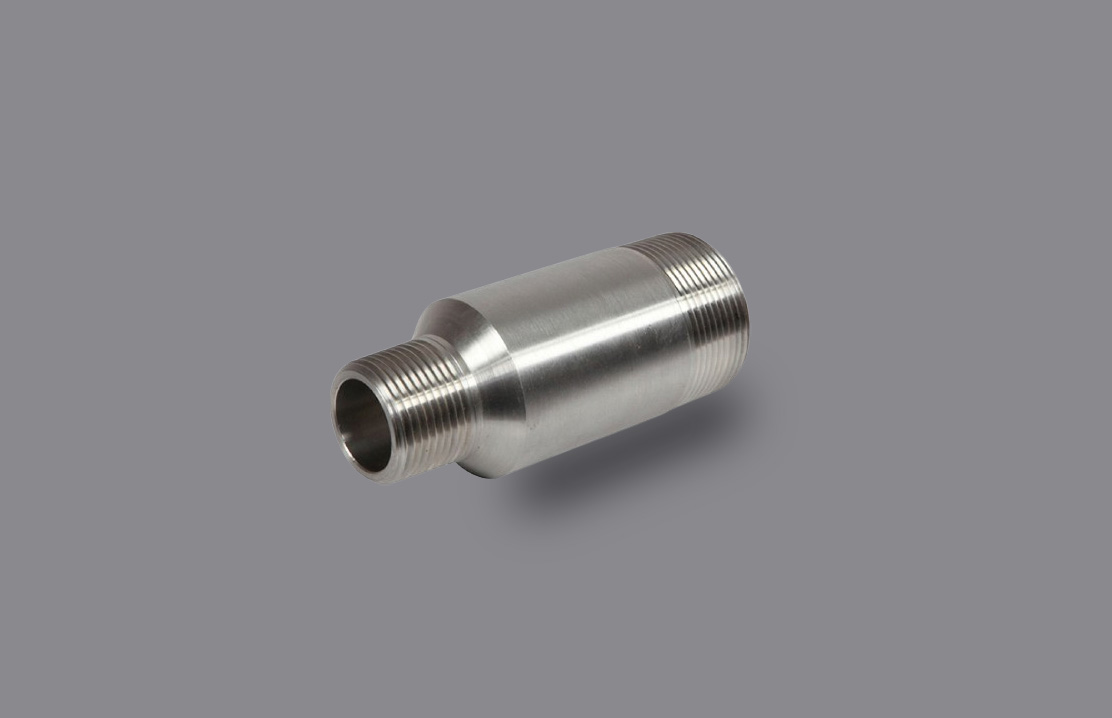

Alloy Steel Forged Nipples
For dependable connections within your piping system, choose EBY Fasteners’ Alloy Steel Forged Nipples. These nipples facilitate secure, leak-free extensions of your lines and allow for smooth transitions when connecting different piping components. Choose from a range of alloy steel grades for the ideal combination of strength, temperature resilience, and corrosion protection to suit your application
EBY Fasteners’ Alloy Steel Forged Nipples are designed to fulfill the stringent criteria of industries like as oil and gas, chemical processing, and power generation. They correspond to ASTM and ASME specifications. This translates to precise measurements, dependable pressure handling, and smooth integration into your current piping network
Trust EBY Fasteners’ Alloy Steel Forged Nipples to provide dependable performance in essential pipe systems. Our commitment to quality guarantees that each nipple is designed to resist the pressures, temperatures, and potentially corrosive environments that your project requires
Trust EBY Fasteners’ Alloy Steel Forged Nipples to provide dependable performance in essential pipe systems. Our commitment to quality guarantees that each nipple is designed to resist the pressures, temperatures, and potentially corrosive environments that your project requires
- Low-Alloy Steels (WP1, WP5, WP9, WP11, WP22) : These grades offer improved strength and toughness compared to plain carbon steel. They also handle moderately elevated temperatures better. As you move up in grades (WP1 to WP22), you'll see incremental improvements in heat and corrosion resistance.
- Stainless Steels (F304/F304L, F316/F316L) : These are your go-to choices for battling corrosion. Their high chromium content forms a protective layer that resists rust and many chemicals. F316/F316L have extra molybdenum for even better resistance to pitting corrosion in harsh environments.
- High-Alloy Steels (WP91) : This specialized grade boasts very high chromium levels. It's designed to handle the intense heat and risk of oxidation found within power plant components. Nipples made from this grade are built to withstand the demanding conditions inside boilers and turbines
- Standards : Alloy steel forged nipples adhere to several standards for quality and compatibility. ASTM A182 covers the material properties of the alloy steel itself. ASME B16.11 dictates dimensions for threaded and socket-weld nipples. MSS SP-95 can play a role for swage nipples.
- Size : Nipple size is defined by Nominal Pipe Size (NPS), which roughly corresponds to the pipe's internal diameter. You'll also need to consider the Schedule (SCH 40, SCH 80, etc.), which determines wall thickness. Various lengths are available to suit different connection needs.
- Pressure Rating : Nipples have pressure classes (often Class 3000 and 6000), which indicate the maximum pressure they can handle at a specific temperature. High-pressure applications might necessitate higher-rated nipples.
- End Connections : How the nipple connects to your pipe matters! Threaded (NPT) is standard in smaller sizes. Socket-weld (SW) is common for larger sizes or higher pressures. Butt-weld (BW) is less common for nipples but possible. Swage nipples, with tapered ends, sometimes find use for custom fit-up.
- Materials : Alloy steel nipples give you options! Low-alloy steels offer a boost in strength and handle moderately higher temperatures compared to basic carbon steel. Stainless steels are your go-to for fighting corrosion. In extreme environments, specialized grades provide tailored solutions
- Versatility in Connection Types : Alloy steel forged nipples come with various end connections, offering flexibility to match your piping needs. Threaded nipples provide easy installation/removal, socket-weld create strong permanent joints, and specialty types like swage nipples allow for customized fit-up.
- Dimensional Precision : The forging process, coupled with adherence to standards like ASME B16.11, ensures excellent dimensional accuracy and tight tolerances. This results in a perfect fit with your existing pipes and minimizes the potential for leaks.
- Pressure Handling : Alloy steel forged nipples often come with various pressure class options (Class 3000, 6000, etc.). This allows you to choose a nipple that perfectly matches the pressure requirements of your system, ensuring safety and preventing overspending on unnecessarily high-rated components.
- Long-Term Reliability : The combination of alloy steel's strength, potential corrosion resistance, and precision manufacturing translates to forged nipples that offer a long service life. They minimize the risk of leaks or failures, reducing maintenance costs and downtime in your piping network.
- Range of Sizes : Alloy steel forged nipples come in a wide range of Nominal Pipe Sizes (NPS) and wall thicknesses (Schedules). This ensures you can find the perfect size for your piping system, whether it's a small process line or a large-diameter main line
- Refinery and Petrochemical : Equal tees are vital for distributing flow, branching lines off within complex piping networks, and handling the various fluids in refineries and petrochemical plants.
- Chemical : In chemical processing, equal tees facilitate branching lines for different chemicals, integrate instrumentation, and withstand the corrosive environments often encountered.
- Oil and Gas : Equal tees distribute flow within gathering lines, branch off smaller secondary lines, and handle the high pressures and potential corrosives found in oil and gas extraction and transmission.
- Power Plant : Within power plants, equal tees connect into steam piping networks, cooling systems, and various process lines where they offer strength, temperature tolerance, and potential corrosion resistance.
- Offshore Platforms : Corrosion-resistant alloy steel equal tees are essential for marine environments, providing flow branching and integration of systems on offshore platforms.
- Ship Building : Equal tees help distribute flow for fuel systems, water lines, and other shipboard piping. They are chosen based on the specific fluid being handled and the need to resist corrosion.
- Industrial Machineries : Equal tees branch hydraulic lines, integrate sensors, and provide robust connections within lubrication or process fluid systems associated with industrial machines.
- Pharmaceuticals : Stainless steel equal tees are crucial for creating sanitary junctions and branching flows within pharmaceutical production lines, ensuring a clean and uncontaminated process.
- Pumps and Compressor : Equal tees allow for the integration of instrumentation, bypass lines, or other auxiliary connections around pumps and compressors, ensuring reliable operation.
- Dairy and Food : Food-grade alloys are used in equal tees for branching flows, distributing fluids within pipelines, and maintaining the hygienic requirements of the dairy and food industry.
- Sugar Mills : Equal tees distribute sugar solutions throughout the process, branch off lines for cleaning or steam integration, and offer strength combined with moderate corrosion resistance where needed.
- Textile Machineries : Equal tees distribute dyes and various chemicals throughout textile production lines while offering resistance tailored to the specific solutions found in the textile industry.
- Fertilizers and Pesticides : Highly corrosion-resistant alloy tees are used to branch and distribute potentially aggressive fertilizers and pesticides, maximizing the lifespan of the piping system
Chemical Composition
| Element | Percentage Range |
|---|---|
| Carbon (C) | Range (0.08 - 0.30) |
| Manganese (Mn) | Range (0.30 - 2.00) |
| Silicon (Si) | Range (0.15 - 0.75) |
| Chromium (Cr) | Range (0.40 - 20.00) |
| Nickel (Ni) | Range (0 - 14.00) |
| Molybdenum (Mo) | Range (0 - 3.00) |
