One of the best manufacturer and exporter of Full Coupling, Half Coupling and Reducing Coupling in India
Forged Couplings by EBY Fittings are available at best price

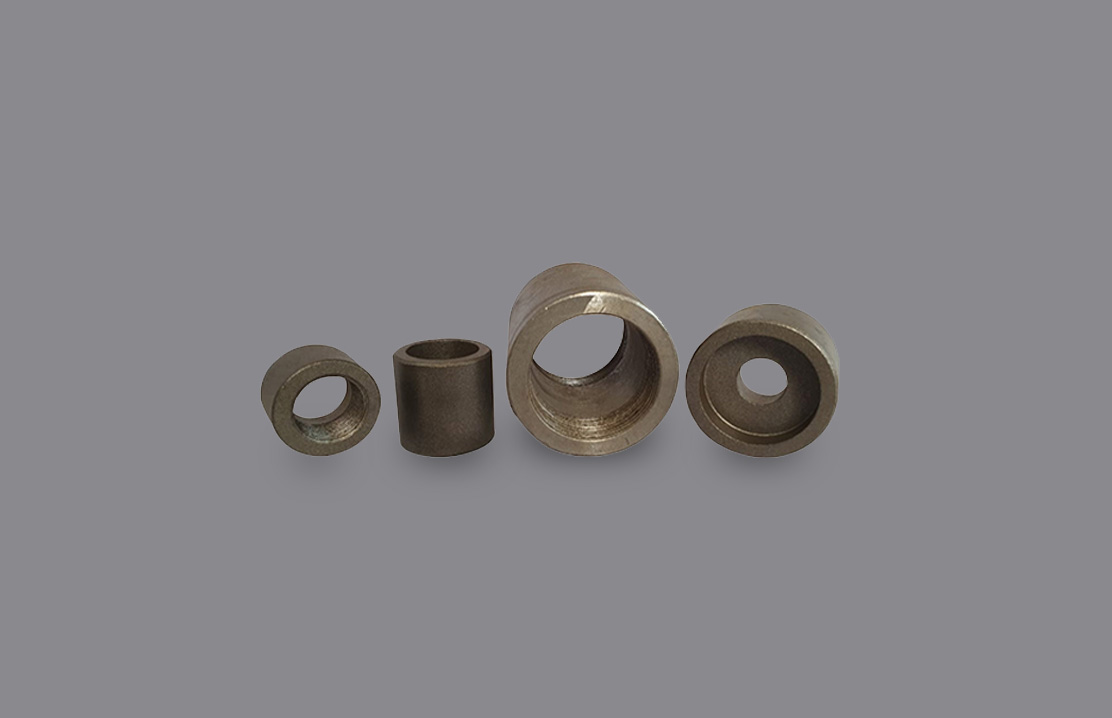

EBY Fittings is proud to introduce our line of Forged Couplings, designed with precision and crafted for excellence. Our range includes Full Coupling, Half Coupling, and Reducing Coupling, each with its unique features and applications
Full Coupling : Our Forged Full Coupling is a versatile connector, designed to join two pipes or tubes of the same diameter. Made with superior materials and tested for quality, it ensures a leak-proof connection, providing reliability and peace of mind
Half Coupling : The Forged Half Coupling from EBY Fittings is a robust and reliable solution for connecting pipes of the same diameter. It’s designed for applications where a full coupling is not necessary, offering flexibility and efficiency in your piping systems
Reducing Coupling : Our Forged Reducing Coupling is the perfect solution when you need to connect pipes of different diameters. It ensures a smooth transition between pipe sizes, maintaining the integrity and flow of your piping system
At EBY Fittings, we believe in delivering products that meet the highest standards of quality and safety. Our Forged Couplings are no exception. Choose EBY Fittings for your piping needs and experience the difference in quality and performance
At EBY Fittings, we believe in delivering products that meet the highest standards of quality and safety. Our Forged Couplings are no exception. Choose EBY Fittings for your piping needs and experience the difference in quality and performance
EBY Fittings uses a variety of high-quality materials in the manufacturing of our Forged Couplings, including Full Coupling, Half Coupling, and Reducing Coupling. These materials are chosen for their durability, strength, and resistance to corrosion, ensuring the longevity and reliability of our products
Here is a list of materials used in the manufacturing process :
Here is a list of materials used in the manufacturing process :
- Carbon Steel : Known for its strength and durability, carbon steel is often used in the manufacturing of our Forged Couplings. It provides excellent performance in high-pressure environments
- Stainless Steel : Stainless steel is another common material used in our Forged Couplings. SS offers corrosion resistance and is suitable for a wide range of applications
- Alloy Steel : Alloy steel, a blend of several different elements, is used for its unique properties such as enhanced hardness and strength
- Nickel Alloys : Nickel alloys are used for their exceptional corrosion resistance, especially in acidic environments. They also offer excellent mechanical properties at both extremely low and high temperatures
- Duplex & Super Duplex Steel : These materials are used for their higher strength and excellent corrosion resistance, particularly in environments with high chloride levels
- Copper Nickel : Also known as cupronickel, this material offers excellent resistance to corrosion in seawater environments, making it an ideal choice for marine applications
Our Forged Couplings, including Full Coupling, Half Coupling, and Reducing Coupling, come with a host of features that make them stand out in the industry. The key features are :
- High-Quality Materials : Our Forged Couplings are made from a variety of high-quality materials such as carbon steel, stainless steel, alloy steel, nickel alloys, duplex & super duplex steel, and copper nickel. These materials ensure durability, strength, and corrosion resistance
- Certified Quality : Our products are certified by ISO 9001:2015, EIL, IBR, ONGC, and NORSOK M650, attesting to our commitment to quality and safety
- Versatility : The Full Coupling, Half Coupling, and Reducing Coupling offer versatility for different piping requirements. Whether you need to connect pipes of the same diameter or different diameters, we have a solution for you
- Durability : Our Forged Couplings are designed to withstand high pressure and temperature conditions, making them suitable for a wide range of applications
- Precision Engineering : Each coupling is precision-engineered for a perfect fit, ensuring a leak-proof connection
- Easy Installation : Our Forged Couplings are designed for easy installation, reducing downtime and increasing efficiency
- Wide Application : From the oil and gas industry to the marine sector, our Forged Couplings find application in a wide range of industries
Applications of Forged Couplings by EBY Fittings Across Various Industries are :
- Oil and Gas Industry : In the oil and gas industry, Forged Couplings by EBY Fittings are used in pipelines to connect different sections. Their high durability and resistance to extreme conditions make them ideal for transporting crude oil and natural gas.
- Construction Industry : In the construction industry, our couplings are used in the assembly of scaffolding, framework, and other structural elements. Their strength and reliability ensure the safety and stability of the structures.
- Automotive Industry : In the automotive industry, Forged Couplings are used in the manufacturing of vehicles. They are used in the assembly of various parts of the vehicle, including the engine, transmission, and exhaust systems.
- Maritime Industry : In the maritime industry, these couplings are used in the construction and repair of ships. They are used in various applications, from the assembly of the ship's hull to the installation of the propulsion system
- Aerospace Industry : In the aerospace industry, Our Forged Couplings are used in the manufacturing of aircraft and spacecraft. Their high strength-to-weight ratio makes them ideal for applications where weight is a critical factor
Specifications
| Specification | Description |
|---|---|
| Dimension | ASME 16.11, MSS SP-79, BS 3799, MSS SP-97, 95, 83 |
| Standard | ASTM SA182, ASTM A182 |
| Size | 1/4" NB - 4" NB |
| Class | 2000 LBS, 3000 LBS, 6000 LBS |
| Type | Socket Weld Fittings and Screwed-Threaded NPT, BSP Fittings |
| Form | Full Couplings, Half Couplings, Reducing Couplings |
Grades
| Material | Grade |
|---|---|
| Stainless Steel | ASTM A182, ASTM / ASME SA 358, GR. TP 904L, 304, 304L, 304H, 309S and 309H, 310S and 310H, 316 and 316TI and 316H, 316LN, 317 and 317L, 321 and 321H, 347 and 347H |
| Duplex and Super Duplex Steel | ASTM A 182 – F 51, F53, F55 S 32750 and S 32760 , S 31803, S 32950, S 32205 and S 32550 |
| Carbon Steel | ASTM A 106 GR. A, B and C, ASTM / ASME A 691 GR A, B and C , ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel | ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91, ASTM / ASME A 182, ASTM / ASME A 335 GR P 91, P 1, P 5, P 9, P 11 and P 12, P 22/23 |
| Alloy Steel | ASTM / ASME SB 111 UNS NO. C 71500 ( CU -NI- 70/30) / C 70600 / C 7150 / C 10100 , C 10200 , C 10300 / C 10800 / C 12000, C 12200, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) |
| Nickel Alloy | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, (NICKEL 200) , (INCONEL 600 ) , (INCONEL 601) , (INCONEL 625), (NICKEL 201 ) , (HASTELLOY C 276) , (MONEL 400 ) , INCONEL (825) |
Certifications
EBY Fittings takes pride in the quality of their Forged Couplings, and this is reflected in the extensive list of certifications
- ISO 9001:2015 : EBY Fittings holds an ISO 9001:2015 certification. This international standard for quality management systems ensures that EBY Fittings consistently produces and controls the Forged Couplings according to quality standards
- Engineers India Limited (EIL) : A leading global engineering consultancy and EPC company, has approved EBY Fittings. This approval speaks volumes about the quality and reliability of our Forged Couplings
- Indian Boiler Regulations (IBR) : The Indian Boiler Regulations (IBR) certify EBY Fitting’s Forged Couplings. This certification guarantees that our products are safe for use in boilers and pressure vessels
- Oil and Natural Gas Corporation (ONGC) : As a certified supplier for the Oil and Natural Gas Corporation (ONGC) , one of India's largest oil and gas exploration and production companies, EBY Fittings demonstrates its commitment to quality and reliability
- NORSOK M650 : Our Forged Couplings have earned a NORSOK M650 certification. This standard, developed by the Norwegian petroleum industry, ensures safety, value adding, and cost effectiveness for petroleum industry developments and operations
Our Forged Couplings come with a host of certifications, reflecting commitment to quality, safety, and customer satisfaction
Why Choose Forged Couplings by EBY Fittings
When it comes to industrial fittings, the choice of product can significantly impact the efficiency, safety, and longevity of your operations. Here are reasons why Forged Couplings by EBY Fittings could be the right choice for you
- Superior Quality : EBY Fittings is committed to delivering high-quality products. Our Forged Couplings are manufactured using advanced forging techniques that enhance their strength and durability
- Wide Range of Applications : Our Forged Couplings are versatile and find applications in various industries, including oil and gas, construction, automotive, maritime, and aerospace. This wide range of applications makes them a practical choice for diverse needs
- Certified Products : EBY Fitting’s Forged Couplings come with a host of certifications, including ISO 9001:2015, EIL, IBR, ONGC, and NORSOK M650. These certifications attest to the quality, safety, and reliability of our products
- Customer Satisfaction : EBY Fittings places a high emphasis on customer satisfaction. We strive to meet and exceed customer expectations by providing products that are not only of high quality but also tailored to the specific needs of the customer
