Buttwelding Outlet
Home - Branch Outlets - Buttwelding Outlet
EBY Fitting is a top manufacturer and exporter of Buttwelding Outlet in india
High quality Buttwelding Outlet for wide range of Industrial application

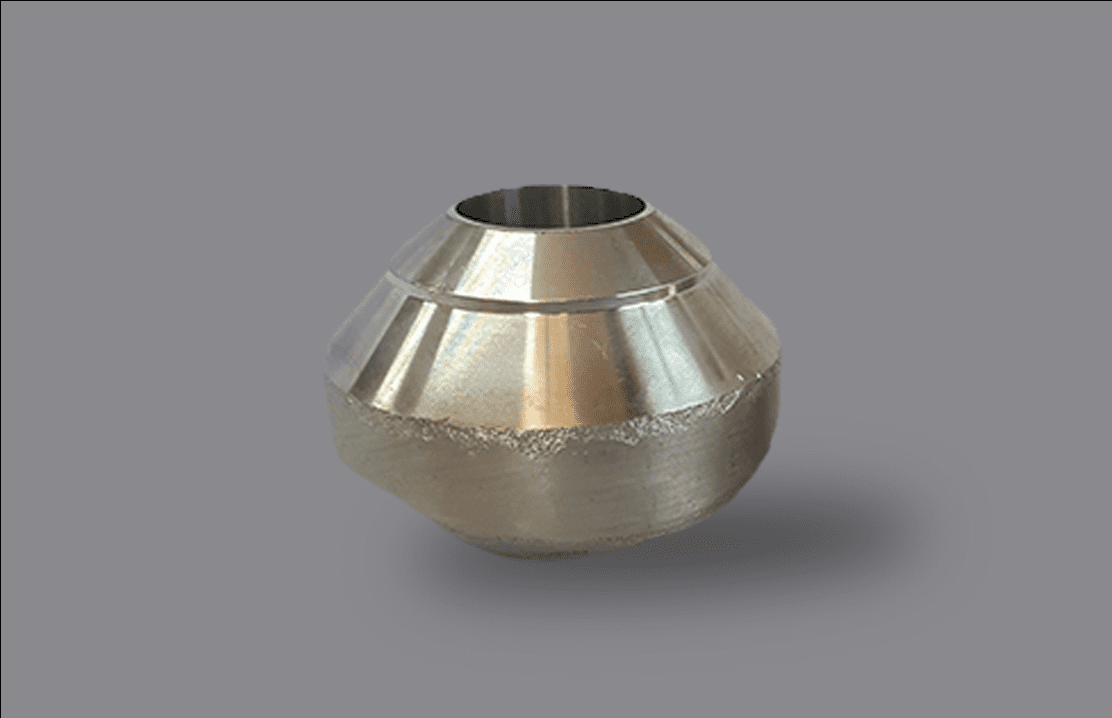

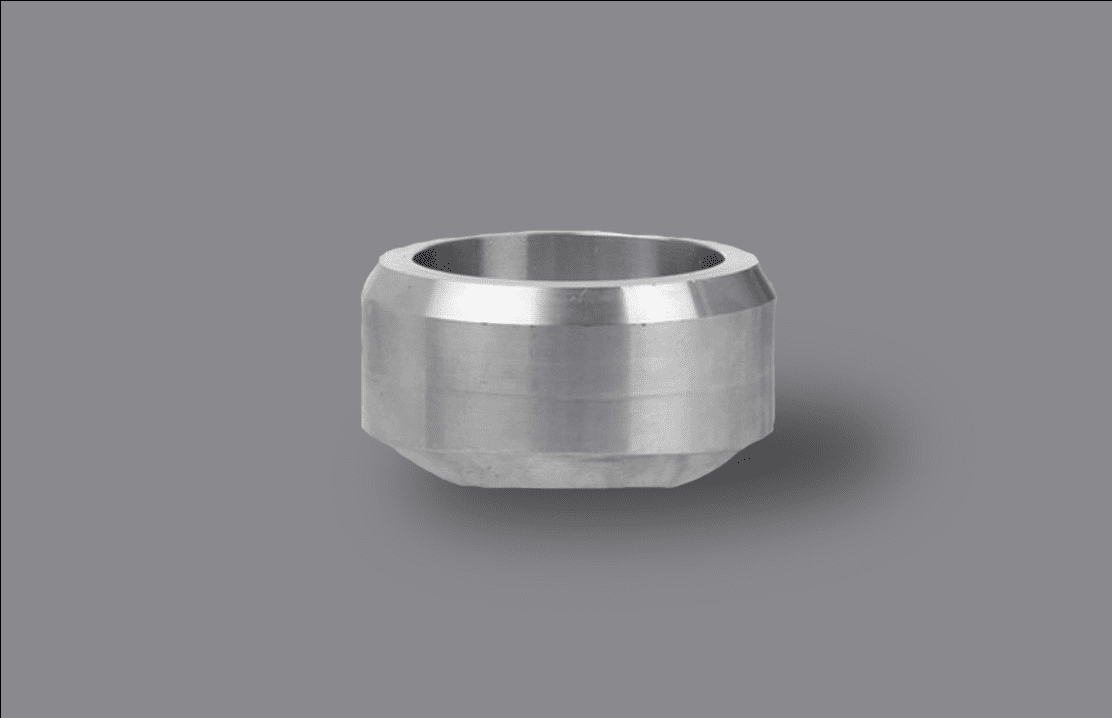

A Buttwelding Outlet is a specialized fitting used in piping systems, designed to provide a branch from the main pipe. It is a crucial component that ensures the smooth and efficient operation of a piping network
The primary feature of our Buttwelding Outlet is its ability to create a secure and leak-proof connection between the main pipe and the branch pipe. This is achieved through a welding process that fuses the outlet to the pipes, creating a strong and durable joint
Manufactured using high-quality materials, our Buttwelding Outlet is designed to withstand high pressures and temperatures, making it suitable for various industrial applications. Its robust construction ensures longevity and reliability, reducing the need for frequent replacements
The design of our Buttwelding Outlet is such that it ensures a smooth flow of materials through the pipes. This minimizes the risk of blockages and disruptions, thereby enhancing the efficiency of the piping system
The design of our Buttwelding Outlet is such that it ensures a smooth flow of materials through the pipes. This minimizes the risk of blockages and disruptions, thereby enhancing the efficiency of the piping system
EBY Fittings, a well-known manufacturer, uses a variety of materials to produce Buttwelding Outlets. These outlets are designed to reduce stress concentrations and provide integral reinforcement, making them suitable for various industries.
Here are the materials used in the production of Buttwelding Outlets by EBY Fittings :
Here are the materials used in the production of Buttwelding Outlets by EBY Fittings :
- Stainless Steel : This includes grades such as A182 F304, ,904L, 304H, 309, 310, 316, 316L, 317L, 321, 347
- Carbon Steel : Grades such as ASTMA 105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 and 70 are used
- Alloy Steel : Grades like ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 are utilized
- Nickel Alloy : Grades such as ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C 276 Outlets), UNS 2200 (NICKEL 200 Outlets), UNS 2201 (NICKEL 201 Outlets), UNS 4400 (MONEL 400 Outlets), UNS 8020 (ALLOY 20 Outlets), UNS 8825 (INCONEL 825 Outlets), UNS 6600 (INCONEL 600 Outlets), UNS 6601 (INCONEL 601 Outlets), UNS 6625 (INCONEL 625 Outlets) are used
- Duplex & Super Duplex Steel : Grades such as ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. UNS NO S31803, S32205 are used
- Copper Alloy Steel : Grades such as ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CUNI-90/10 Cupro Nickel Outlets), C71500 (CUNI-70/30 Copper Nickel Outlets) are used
Buttweld Outlets (Branch Outlets) by EBY Fittings come with a range of features that make them a preferred choice for various industrial applications. The key features are :
- High Manufacturing Standards : EBY Fittings ensures the highest manufacturing standards and compliance with applicable ANSI, BS, and MSS-SP specifications
- Quality Assurance : These outlets are made in accordance with ASTM / ASME, BS, DIN, and other equivalent standards, which are approved by all leading PMCs, EPCs, and Consultants
- Global Supply : EBY Fittings has proven execution of small as well as large batch orders with on-time delivery commitment
- Stress Minimization : The architecture of the outlets minimizes the concentration of tension and provides overall strengthening
- Strong and Leak-Proof Connection : Butt welds involve welding the outlet directly to the end of the pipe, creating a strong and leak-proof connection
- Variety of Fittings : We offer a variety of fittings such as LATERAL OUTLET (SW, BW & SCRD), ELBOW OUTLET (SW, BW & SCRD), BUTTWELDING OUTLET, NIPPLE OUTLET, SOCKET WELD OUTLET & THREADED OUTLET
Buttwelding Outlets by EBY Fittings are versatile and find applications across a wide range of industries. The key industries where they are used :
- Chemical Industry : These outlets are used in the chemical industry due to their ability to withstand corrosive environments and high temperatures
- Pipeline Fitting : They are commonly used in pipeline fitting for making a 90° branch connection. They come in full size or reduced for a straight piece of pipe
- Food Processing : The outlets are used in the food processing industry because of their hygienic design and resistance to various cleaning and sterilization processes
- Refineries : In refineries, these outlets are used due to their ability to handle high pressures and temperatures
Materials we use for Buttwelding Outlet
EBY Fittings, a well-known manufacturer, uses a variety of materials to produce Buttwelding Outlets. These outlets are designed to reduce stress concentrations and provide integral reinforcement, making them suitable for various industries
Here are the materials used in the production of Buttwelding Outlets by EBY Fittings
- Stainless Steel : This includes grades such as A182 F304, ,904L, 304H, 309, 310, 316, 316L, 317L, 321, 347
- Carbon Steel : Grades such as ASTMA 105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 and 70 are used
- Alloy Steel : Grades like ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91 are utilized
- Nickel Alloy : Grades such as ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C 276 Outlets), UNS 2200 (NICKEL 200 Outlets), UNS 2201 (NICKEL 201 Outlets), UNS 4400 (MONEL 400 Outlets), UNS 8020 (ALLOY 20 Outlets), UNS 8825 (INCONEL 825 Outlets), UNS 6600 (INCONEL 600 Outlets), UNS 6601 (INCONEL 601 Outlets), UNS 6625 (INCONEL 625 Outlets) are used
- Duplex & Super Duplex Steel : Grades such as ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. UNS NO S31803, S32205 are used
- Copper Alloy Steel : Grades such as ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CUNI-90/10 Cupro Nickel Outlets), C71500 (CUNI-70/30 Copper Nickel Outlets) are used
These materials are chosen for their durability, corrosion resistance, and ability to withstand high temperatures and pressures, making them ideal for a wide range of industrial applications
Features of our Buttweld Outlet
Buttweld Outlets (Branch Outlets) by EBY Fittings come with a range of features that make them a preferred choice for various industrial applications. The key features are
- High Manufacturing Standards : EBY Fittings ensures the highest manufacturing standards and compliance with applicable ANSI, BS, and MSS-SP specifications
- Quality Assurance : These outlets are made in accordance with ASTM / ASME, BS, DIN, and other equivalent standards, which are approved by all leading PMCs, EPCs, and Consultants
- Global Supply : EBY Fittings has proven execution of small as well as large batch orders with on-time delivery commitment
- Stress Minimization : The architecture of the outlets minimizes the concentration of tension and provides overall strengthening
- Strong and Leak-Proof Connection : Butt welds involve welding the outlet directly to the end of the pipe, creating a strong and leak-proof connection
- Variety of Fittings : We offer a variety of fittings such as LATERAL OUTLET (SW, BW & SCRD), ELBOW OUTLET (SW, BW & SCRD), BUTTWELDING OUTLET, NIPPLE OUTLET, SOCKET WELD OUTLET & THREADED OUTLET
Applications of our Buttweld Outlet
Buttwelding Outlets by EBY Fittings are versatile and find applications across a wide range of industries. The key industries where they are used :
- Chemical Industry : These outlets are used in the chemical industry due to their ability to withstand corrosive environments and high temperatures
- Pipeline Fitting : They are commonly used in pipeline fitting for making a 90° branch connection. They come in full size or reduced for a straight piece of pipe
- Food Processing : The outlets are used in the food processing industry because of their hygienic design and resistance to various cleaning and sterilization processes
- Refineries : In refineries, these outlets are used due to their ability to handle high pressures and temperatures
Specifications
| Specification | Description |
|---|---|
| Range | Butt-Weld: ½ inch to 32 inch up to all Schedule |
| Standard | MSS SP-97 |
| Thickness | SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 160, SCH XXS |
Grades
| Material | Grade |
|---|---|
| Stainless Steel | A182 904L, F304, 304H, 309, 310, 316, 316L, 317L, 321, 347 |
| Carbon Steel | ASTMA 105 / 350 LF2 / A516 / A694 / Gr. F42 / 46 / 52 / 56 / 60 / 65 and 70 |
| Alloy Steel | ASTM / ASME A/SA 182 F1/F5/F9/F11/F22 and F91 |
| Nickel Alloy | ASTM / ASME SB 564 / 160 / 472 – UNS 10276 (HASTELLOY C 276 Outlets), UNS 2200 (NICKEL 200 Outlets), UNS 2201 (NICKEL 201 Outlets), UNS 4400 (MONEL 400 Outlets), UNS 8020 (ALLOY 20 Outlets), UNS 8825 (INCONEL 825 Outlets), UNS 6600 (INCONEL 600 Outlets) etc. |
| Duplex & Super Duplex Steel | ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. UNS NO S31803 and S32205 |
| Copper Alloy Steel | ASTM / ASME SB 61 / 62 / 151 / 152 – C70600 (CUNI-90/10 Cupro Nickel Outlets), C71500 (CUNI-70/30 Copper Nickel Outlets) |
Certifications
EBY fittings, a renowned manufacturer of Buttwelding Outlets, is proud to announce that we have been awarded several prestigious certifications, demonstrating our commitment to quality, safety, and continuous improvement
- ISO 9001:2015 : This certification is a testament to our dedication to implementing and maintaining a robust quality management system. It ensures that the company’s Buttwelding Outlets are manufactured following the highest international standards
- EIL (Engineers India Limited) : EIL’s certification is a significant achievement that underscores EBY fitting’s ability to meet the stringent quality requirements set by one of India’s leading public-sector engineering consultancy agencies
- IBR (Indian Boiler Regulations) : The IBR certification is proof of our compliance with the Indian Boiler Regulations, ensuring the safety and reliability of Buttwelding Outlets in high-pressure environments
- ONGC (Oil and Natural Gas Corporation) : Being certified by ONGC, India’s largest oil and gas exploration and production company, demonstrates our capability to meet the demanding requirements of the oil and gas industry
- NORSOK M650 : This Norwegian standard is recognized globally and certifies that our manufacturing processes for its Buttwelding Outlets meet the rigorous demands of the petroleum, petrochemical, and natural gas industries
Why Choose Buttwelding Outlets by EBY Fittings
Choosing Buttwelding Outlet (Branch Outlets) by EBY Fittings is a decision that brings numerous benefits. Here are some compelling reasons why EBY Fittings should be your go-to choice
- Quality Assurance : EBY Fittings is certified by ISO 9001:2015, ensuring that our Buttwelding Outlets are manufactured to the highest international standards
- Industry Recognition : With certifications from EIL, IBR, ONGC, and NORSOK M650, EBY Fittings has proven its ability to meet the stringent requirements of various industries, including engineering consultancy, boiler manufacturing, and oil and gas exploration
- Safety Compliance : Our adherence to the Indian Boiler Regulations (IBR) guarantees the safety and reliability of our Buttwelding Outlets in high-pressure environments
- Customization : We offer a wide range of Buttwelding Outlets that can be customized to meet specific project requirements, ensuring optimal performance and efficiency
- Customer Satisfaction : At EBY Fittings, we prioritize customer satisfaction. Our commitment to quality, safety, and continuous improvement ensures that our customers receive products that exceed their expectations
