90° Elbow Outlet (SW, BW & SCRD)
Home - Branch Outlets - 90° Elbow Outlet (SW, BW & SCRD)

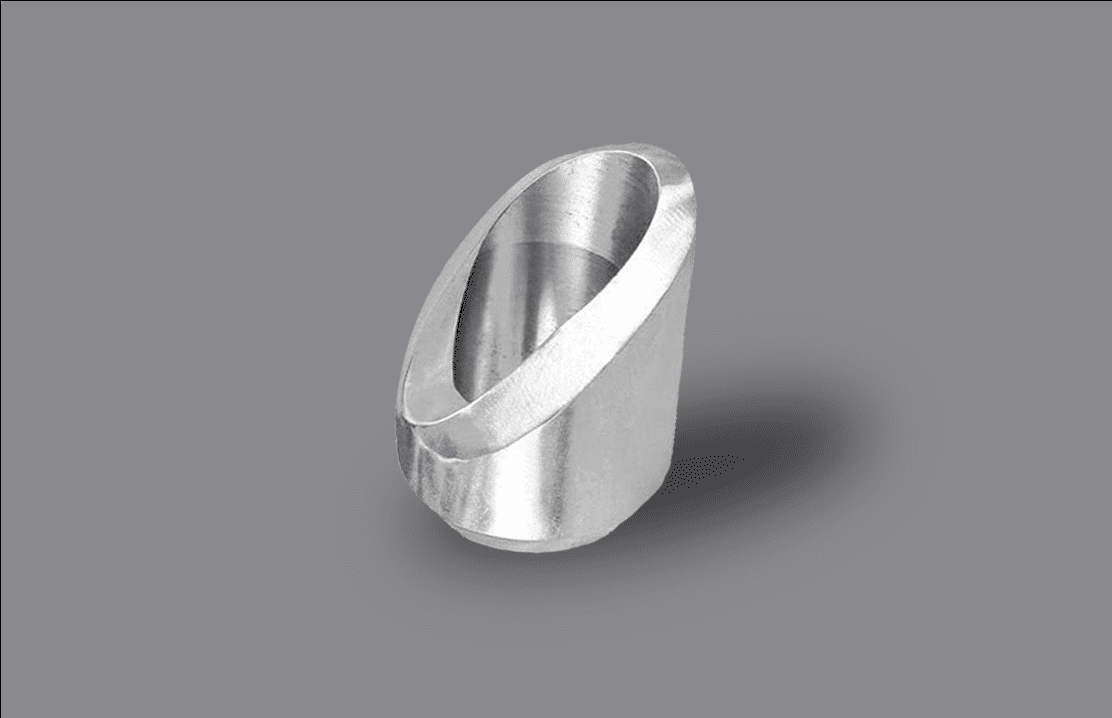

90 degree Elbow Outlet by EBY Fittings have robust design and are reliable

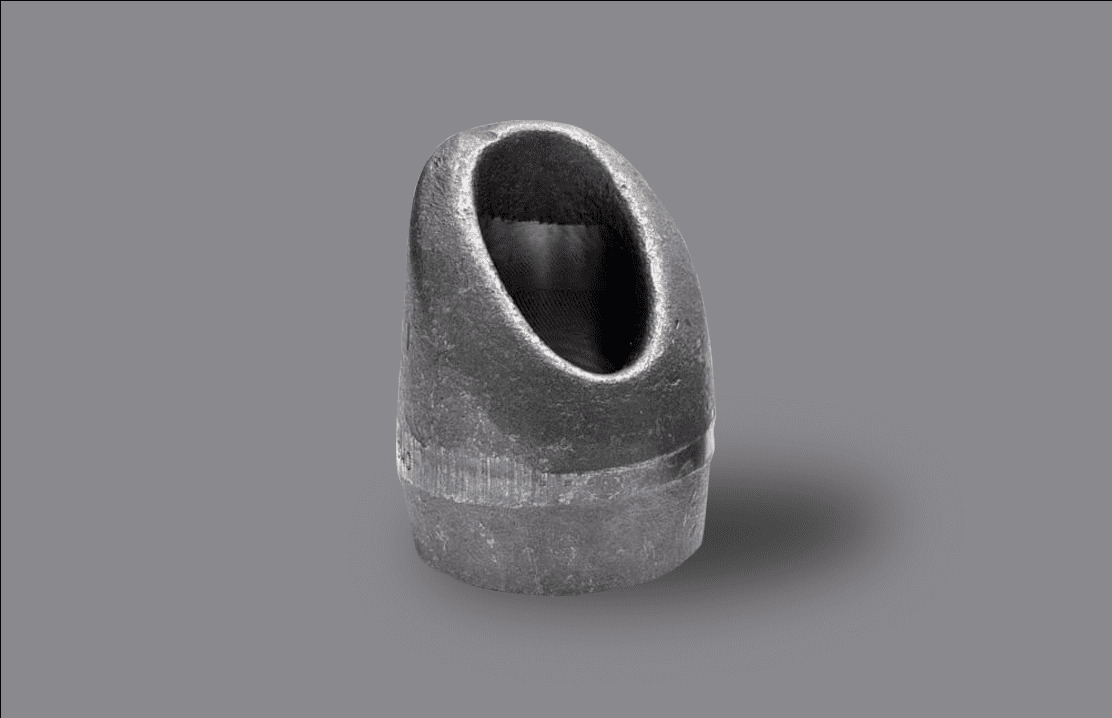

90 Degree Elbow Outlet by EBY Fittings are durable and and robust
The 90 degree Elbow Outlet, a distinguished product from EBY Fittings, is a testament to the our commitment to delivering high-quality and reliable pipe fittings. This particular fitting, available in Socket Weld (SW), Butt Weld (BW), and Screwed (SCRD) variants, is designed to create a 90-degree change in the direction of flow in a pipe system
The 90 degree Elbow Outlet is not just a fitting; it’s a solution that caters to a wide range of applications across various industries. Its robust design ensures durability and efficiency, making it an ideal choice for systems that require high performance and reliability
EBY Fittings, with its rich history and expertise in the field, has meticulously engineered this product to meet the highest industry standards. The 90 degree Elbow Outlet is an example of EBY our dedication to innovation and quality, making it a trusted choice for professionals worldwide
EBY Fittings, with its rich history and expertise in the field, has meticulously engineered this product to meet the highest industry standards. The 90 degree Elbow Outlet is an example of EBY our dedication to innovation and quality, making it a trusted choice for professionals worldwide
EBY Fitting’s 90degree Elbow Outlet (SW, BW & SCRD) is produced from a selection of materials, each chosen for their unique properties that contribute to the product’s overall performance and durability. The materials used in the manufacturing process include :
- Stainless Steel : Known for its corrosion resistance and strength, stainless steel is a common choice for pipe fittings. It can withstand high temperatures and pressures, making it suitable for a variety of applications
- Carbon Steel : This material is prized for its high tensile strength and durability. Carbon steel is often used in industries where robustness and longevity are critical
- Alloy Steel : Alloy steel combines the strength of carbon steel with additional resistance to corrosion, heat, and wear. This makes it an excellent choice for environments that require extra durability
- Nickel Alloys : These alloys are highly resistant to corrosion and can withstand extreme temperatures, making them ideal for harsh operating conditions
- Copper Alloys : Copper alloys, including brass and bronze, are known for their excellent thermal conductivity and corrosion resistance
- Duplex and Super Duplex Steel : These materials offer higher strength and corrosion resistance compared to regular stainless steel, making them suitable for challenging applications
The 90 degree Elbow Outlet (SW, BW & SCRD) by EBY Fittings boasts a range of features that make it a standout product in the pipe fittings market :
- Versatility : Available in Socket Weld (SW), Butt Weld (BW), and Screwed (SCRD) types, this fitting caters to a wide array of applications across various industries
- Durability : Crafted from materials like stainless steel, carbon steel, and alloy steel, the 90degree Elbow Outlet is designed to withstand high pressures and temperatures, ensuring long-lasting performance
- High Standards : The product adheres to international standards such as ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, and BS 3799, reflecting its high quality and reliability
- Wide Size Range : With sizes ranging from ½ inch to 48 inch, the 90 degree Elbow Outlet can accommodate a variety of pipe diameters, making it a flexible solution for different piping systems
- Corrosion Resistance : The use of materials like stainless steel and nickel alloys provides excellent resistance to corrosion, enhancing the product’s lifespan in various environments
- Easy Installation : The 90 degree Elbow Outlet is designed for easy installation, reducing the time and effort required for pipe system assembly
The 90 degree Elbow Outlet (SW, BW & SCRD) by EBY Fittings finds extensive application across a wide range of industries, thanks to its versatility, durability, and high performance. The key industries where it is commonly used are :
- Oil and Gas Industry : The 90 degree Elbow Outlet is widely used in the oil and gas industry for its ability to withstand high pressures and temperatures, making it ideal for the demanding conditions of extraction and refining processes
- Chemical Industry : The corrosion resistance of the materials used in the 90degree Elbow Outlet makes it suitable for the chemical industry, where it can handle a variety of corrosive substances
- Power Generation : In power plants, the 90 degree Elbow Outlet is used in piping systems that carry steam, water, and other fluids essential to power generation
- Pharmaceuticals : The pharmaceutical industry requires high standards of hygiene and cleanliness. The 90 degree Elbow Outlet, with its smooth surface and corrosion resistance, meets these requirements
- Food and Beverage Industry : The 90 degree Elbow Outlet is used in the food and beverage industry for its non-toxic and corrosion-resistant properties, ensuring the safe and hygienic transportation of consumable goods
- Construction : In the construction industry, the 90 degree Elbow Outlet is used in building water supply, drainage, and heating systems
Materials we use for 90degree Elbow Outlet (SW, BW & SCRD)
EBY Fitting’s 90degree Elbow Outlet (SW, BW & SCRD) is produced from a selection of materials, each chosen for their unique properties that contribute to the product’s overall performance and durability. The materials used in the manufacturing process include :
- Stainless Steel : Known for its corrosion resistance and strength, stainless steel is a common choice for pipe fittings. It can withstand high temperatures and pressures, making it suitable for a variety of applications
- Carbon Steel : This material is prized for its high tensile strength and durability. Carbon steel is often used in industries where robustness and longevity are critical
- Alloy Steel : Alloy steel combines the strength of carbon steel with additional resistance to corrosion, heat, and wear. This makes it an excellent choice for environments that require extra durability
- Nickel Alloys : These alloys are highly resistant to corrosion and can withstand extreme temperatures, making them ideal for harsh operating conditions
- Copper Alloys : Copper alloys, including brass and bronze, are known for their excellent thermal conductivity and corrosion resistance
- Duplex and Super Duplex Steel : These materials offer higher strength and corrosion resistance compared to regular stainless steel, making them suitable for challenging applications
Features of our 90degree Elbow Outlet (SW, BW and SCRD)
The 90 degree Elbow Outlet (SW, BW & SCRD) by EBY Fittings boasts a range of features that make it a standout product in the pipe fittings market
- Versatility : Available in Socket Weld (SW), Butt Weld (BW), and Screwed (SCRD) types, this fitting caters to a wide array of applications across various industries
- Durability : Crafted from materials like stainless steel, carbon steel, and alloy steel, the 90degree Elbow Outlet is designed to withstand high pressures and temperatures, ensuring long-lasting performance
- High Standards : The product adheres to international standards such as ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316, and BS 3799, reflecting its high quality and reliability
- Wide Size Range : With sizes ranging from ½ inch to 48 inch, the 90 degree Elbow Outlet can accommodate a variety of pipe diameters, making it a flexible solution for different piping systems
- Corrosion Resistance : The use of materials like stainless steel and nickel alloys provides excellent resistance to corrosion, enhancing the product’s lifespan in various environments
- Easy Installation : The 90 degree Elbow Outlet is designed for easy installation, reducing the time and effort required for pipe system assembly
Applications of our 90 degree Elbow Outlet (SW, BW and SCRD)
The 90 degree Elbow Outlet (SW, BW & SCRD) by EBY Fittings finds extensive application across a wide range of industries, thanks to its versatility, durability, and high performance. The key industries where it is commonly used are :
- Oil and Gas Industry : The 90 degree Elbow Outlet is widely used in the oil and gas industry for its ability to withstand high pressures and temperatures, making it ideal for the demanding conditions of extraction and refining processes
- Chemical Industry : The corrosion resistance of the materials used in the 90degree Elbow Outlet makes it suitable for the chemical industry, where it can handle a variety of corrosive substances
- Power Generation : In power plants, the 90 degree Elbow Outlet is used in piping systems that carry steam, water, and other fluids essential to power generation
- Pharmaceuticals : The pharmaceutical industry requires high standards of hygiene and cleanliness. The 90 degree Elbow Outlet, with its smooth surface and corrosion resistance, meets these requirements
- Food and Beverage Industry : The 90 degree Elbow Outlet is used in the food and beverage industry for its non-toxic and corrosion-resistant properties, ensuring the safe and hygienic transportation of consumable goods
- Construction : In the construction industry, the 90 degree Elbow Outlet is used in building water supply, drainage, and heating systems
Specifications
| Specification | Description |
|---|---|
| Size | Ranges from 1/2inch to 48inch |
| Standards | ASME/ANSI B16.11, MSS-SP-97, MSS-SP-79, JIS B2316 etc |
| Type | Socket Weld (SW), Butt Weld (BW), Screwed (SCRD) |
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |
| Wall Thickness | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH120, SCH140, SCH160 |
Grades
| Material | Grade |
|---|---|
| Stainless Steel | SS 304, 304L, 316, 316L, 317, 317L, 321, 310, 347, 904L, etc. |
| Carbon Steel | A105, A350 LF2, A53 GR.B, A106 GR.B, etc. |
| Alloy Steel | A182 F1, F5, F9, F11, F22, F91 |
| Nickel Alloys | Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C276, C22 |
| Copper Alloys | Copper, Brass & Gunmetal |
| Duplex & Super Duplex Steel | UNS S31803, S32205 |
Certifications
Our 90 degree Elbow Outlet fittings are certified by some of the most prestigious certifications in the industry. These include :
- ISO 9001:2015 : This certification attests to our commitment to quality management principles including a strong customer focus, the involvement of top management, a process approach, and continual improvement
- Engineers India Limited (EIL) : EIL certification is a testament to our adherence to stringent quality control measures and our commitment to delivering products that meet the highest engineering standards
- Indian Boiler Regulations (IBR) : Our 90 degree Elbow Outlet fittings comply with IBR standards, ensuring their suitability for use in boiler installations and pipelines across India
- Oil and Natural Gas Corporation (ONGC) : As a certified supplier for ONGC, we guarantee that our fittings meet the rigorous standards required for oil and gas applications
- NORSOK M650 : This certification validates that our 90 degree Elbow Outlet fittings are manufactured according to the stringent requirements of the NORSOK standards, developed by the Norwegian petroleum industry
Why Choose 90 degree Elbow Outlet (SW, BW and SCRD) by EBY Fittings
Choosing the 90 degree Elbow Outlet fittings (SW, BW, and SCRD) by EBY Fittings is a decision that brings numerous benefits
- Quality Assurance : Our fittings are certified by ISO 9001:2015, EIL, IBR, ONGC, and NORSOK M650
- Versatility : Available in Socket Weld (SW), Butt Weld (BW), and Screwed (SCRD) types, our 90 degree Elbow Outlet fittings cater to a wide range of applications, offering flexibility in installation and use
- Durability : Manufactured with precision and high-quality materials, our fittings are designed to withstand demanding conditions, ensuring longevity and reliability
- Performance : Our 90degree Elbow Outlet fittings are engineered for optimal performance. They ensure smooth flow of materials, reducing the risk of blockages and leaks
- Customer Support : At EBY Fittings, we believe in providing exceptional customer service. Our team is always ready to assist with any queries or concerns
- Sustainability : We are committed to sustainable practices in our manufacturing processes, contributing to a greener and cleaner environment
Our 90 degree Elbow Outlet is choosing quality, versatility, durability, performance, excellent customer support, and sustainability. It’s a choice you won’t regret
