Alloy Steel Forged Pipe Fittings
Alloy steel forged pipe fittings are robust components designed for demanding piping systems. Forged from high-strength alloy steels, they offer superior mechanical strength, temperature tolerance, and corrosion resistance compared to standard carbon steel fittings. These fittings are ideal for critical applications in industries like refineries, power plants, and chemical processing where reliability and durability are paramount
Versatility of Alloy Steel Forged Pipe Fittings
Achieve superior flow control and system reliability with EBY Fasteners’ high-performance Alloy Steel Forged Pipe Fittings. These precision-crafted fittings are engineered to withstand the rigors of demanding industrial processes. Experience the advantages of forged strength, customized alloy compositions for high-temperature resilience, and superior resistance to corrosive environments

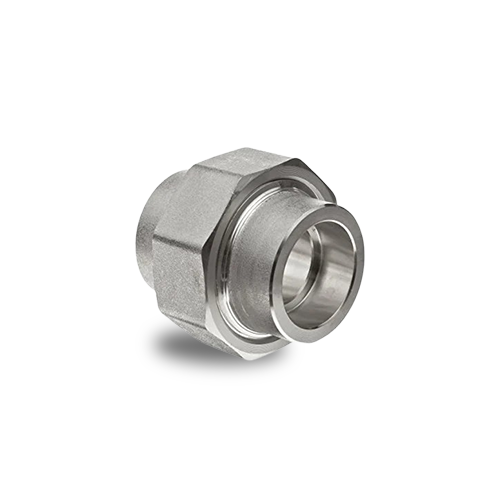

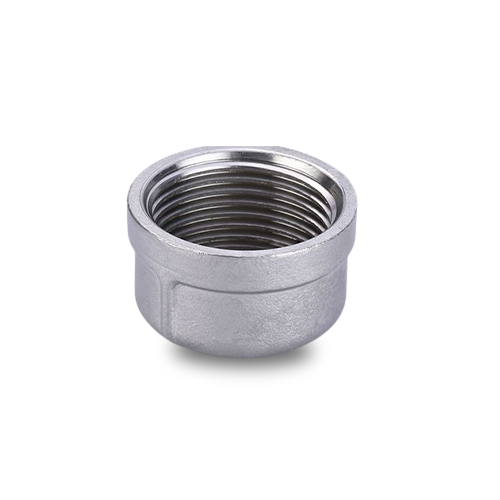

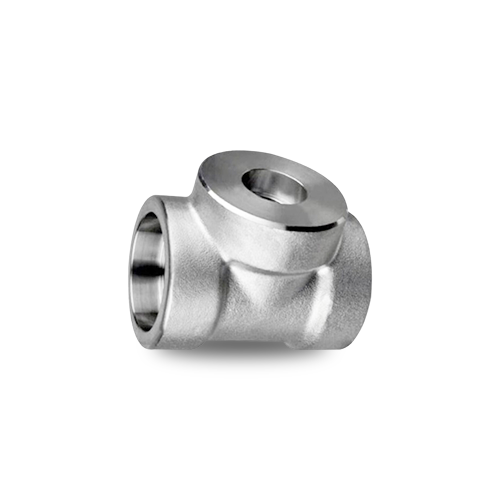

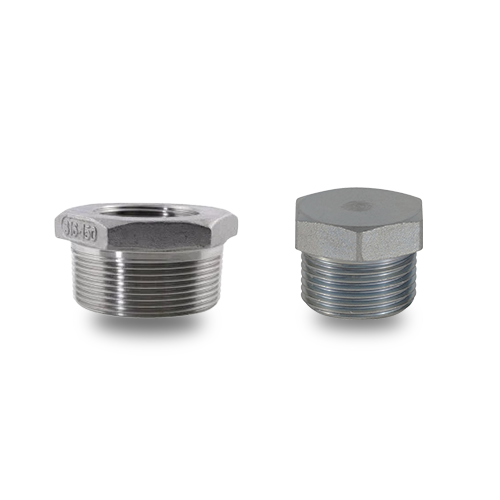

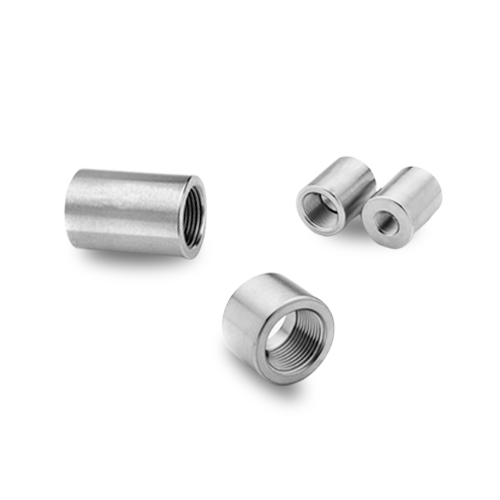

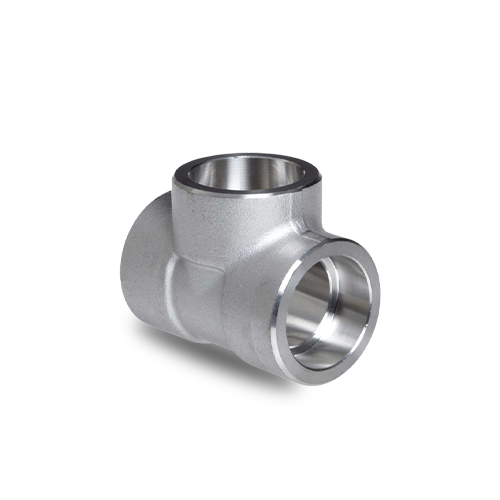

- Types of Alloy Steel Forged Pipe Fittings : Alloy steel forged pipe fittings come in a variety of types to build complex piping systems. These include elbows (for changing flow direction), tees and crosses (for creating branches), reducers and couplings (for managing pipe size transitions), and flanges (for connections to other equipment). Additionally, you'll find caps, plugs, unions, and the possibility of custom-fabricated fittings for specialized needs.
- Enhanced Performance : Alloy steel forged pipe fittings, with types like elbows, tees, reducers, and flanges, contribute to enhanced system performance in several ways. They ensure smooth flow transitions, secure connections, and provide the flexibility to design complex piping networks. Their forged construction and alloy composition lend superior strength and resilience, minimizing leaks and downtime in demanding applications
- Adaptability : Alloy steel forged pipe fittings offer exceptional adaptability for diverse piping needs. Elbows, tees, reducers, and flanges provide the building blocks for layouts ranging from simple to highly complex. Their compatibility with different pipe sizes and connection methods (welded, threaded) further increases adaptability. The ability to customize forged fittings ensures compatibility even in unique piping scenarios
Technical Specifications
- ASTM / ASME A182 : This standard covers the materials, dimensions, tolerances, and testing requirements for forged alloy steel fittings designed for high-pressure and high-temperature service.
- ASTM / ASME A234 : This standard specifically addresses wrought carbon steel and alloy steel fittings for pressure piping systems. It covers materials, manufacturing processes, and quality control.
- MSS SP-43 : This standard from the Manufacturers Standardization Society (MSS) focuses on wrought and fabricated butt-welding fittings. It provides dimensional standards and tolerances.
- API 600/602 : These American Petroleum Institute (API) standards apply to flanged and butt-welding end steel gate valves (600) and small forged steel globe valves (602). These valves are often connected using alloy steel forged fittings.
- Specific Grades (P11, P22, WP91, etc.) : The chosen alloy grade dictates the chemical composition, influencing mechanical strength, temperature resistance, and corrosion resistance. It's essential to match the grade to the operating conditions of your piping system
Customized Alloy Steel Forged Pipe Fittings as per project's specific requirements
- Low Carbon Steel (Mild Steel) Forged Pipe Fitting : This grade is characterized by low carbon content (0.05% - 0.30%) for excellent ductility and weldability. Manganese (0.25% - 0.90%) is present to boost strength moderately. Phosphorus and sulfur are limited to a maximum of 0.040% and 0.050%, respectively, to prevent material embrittlement. Silicon (0.15% - 0.40%) contributes to the steelmaking process and slightly enhances strength
- Medium Carbon Steel Forged Pipe Fitting : Increased carbon content (0.30% - 0.60%) in this grade provides a greater balance between strength, hardness, and ductility. A higher manganese level (0.60% - 1.65%) further improves strength and its response to heat treatment. Phosphorus and sulfur remain strictly controlled (maximum 0.040% and 0.050%) for material integrity. Silicon content (0.15% - 0.60%) is comparable to low carbon grades
- High Carbon Steel Forged Pipe Fitting : This grade boasts the highest carbon content (0.60% - 1.00%, potentially higher). Manganese (0.30% - 0.90%) remains important for strength enhancement. To maintain toughness, phosphorus and sulfur levels are capped at 0.040% and 0.050% respectively. Silicon content can be up to 0.60%. High carbon forged fittings may also include other alloying elements (chromium, molybdenum, nickel, etc.) to tailor properties for specific, demanding applications
- ASTM A105 and ASTM A350 (LF1, LF2, LF3) for low-temperature applications : Offers moderate tensile strength (60,000 - 75,000 psi) and yield strength (30,000 - 45,000 psi), making it suitable for less demanding applications. It possesses the highest ductility (25-35+% elongation in 2") among the three grades, allowing for easy shaping and good deformation resistance. Its hardness (120-160 Brinell) is the lowest, indicating less resistance to indentation or wear
- ASTM A105 (higher carbon end of the spec) and ASTM A694 (lower grades like F42, F52) : These grades provide a balance with increased tensile strength (75,000 - 100,000 psi) and yield strength (45,000 - 70,000 psi), making it more versatile for a wider range of piping systems. While its ductility (20-30% elongation in 2") is lower compared to low carbon steel, it remains sufficient for many applications. The hardness increases to 160-220 Brinell, providing better wear resistance
- ASTM A694 (higher grades like F60, F65) and Tool Steels (for very high hardness and wear resistance) : These grades deliver the highest tensile strength (100,000+ psi) and yield strength (70,000+ psi), making it ideal for applications requiring exceptional strength. However, its ductility (15-25% elongation in 2") is significantly lower, so extra care must be taken during shaping and installation to avoid cracking. The hardness (220+ Brinell) is the highest of the three grades, offering excellent resistance to wear and abrasion
Dimensional tolerances govern the acceptable variations in size and shape of carbon steel forged pipe fittings. These tolerances are essential for ensuring proper fit, alignment, and leak-free connections within piping systems. Standards like MSS SP-97 (for buttweld, threaded, and socket weld fittings) and ASME B16.11 (for forged fittings) set strict guidelines for dimensional tolerances
- Class 150 : This class is less common for forged fittings but is used for low-pressure applications in general-purpose systems. It indicates a lower maximum allowable pressure compared to higher classes
- Class 300 : A versatile and widely used class, suitable for moderate-pressure piping systems across numerous industries. Fittings in this class offer a good balance of cost and pressure capability
- Class 600 and 900 : Class 600 and 900 fittings are designed for applications with higher pressure requirements compared to the lower classes. Class 600 offers a significant increase in pressure handling capability over Class 300, making it suitable for more demanding systems. Class 900 represents a further step up, accommodating even greater pressures
- Class 1500 & Above (2500, 4500) : Classes 1500, 2500, and 4500 signify successively higher pressure capabilities for successively more demanding applications. Fittings in these classes are engineered for strength and are often found in extremely high-pressure systems like those in the oil & gas or chemical processing industries
Mechanical Standards
Key Standards Organizations
- ASTM International : Develops comprehensive standards covering materials, manufacturing, and testing of alloy steel forged pipe fittings.
- ASME (American Society of Mechanical Engineers) : Establishes standards relevant to piping components, including mechanical property requirements for pressure-containing parts.
- MSS (Manufacturers Standardization Society) : Focuses on standards specific to pipe fittings, covering dimensions, tolerances, and testing procedures.
- API (American Petroleum Institute) : Sets standards for valves and fittings used in the oil and gas industry, which may include mechanical property requirements
Important Standards for Alloy Steel Forged Pipe Fittings
- ASTM A182 : Covers forged alloy and stainless steel pipe flanges, fittings, valves, and parts for high-temperature or high-pressure service.
- ASTM A234 : Addresses wrought carbon steel and alloy steel fittings for pressure piping systems.
- ASME B16.9 : Outlines dimensions and tolerances for factory-made wrought buttwelding fittings.
- MSS SP-43 : Specifically covers wrought and fabricated buttwelding fittings.
- API 600/602 : Standards for flanged and butt-welding end steel gate valves (600) and small forged steel globe valves (602), which often interact with forged fittings
The EBY Fasteners Advantage
- Quality and Precision : EBY Fasteners meticulously manufactures alloy steel forged pipe fittings to meet stringent industry standards (ASTM, ASME, MSS, API). This translates to precise dimensions, tight tolerances, and superior structural integrity for your demanding piping systems.
- Selection and Support : We offer a vast selection of alloy steel forged pipe fittings encompassing various sizes, pressure ratings, connection styles, and alloy grades. Our experts assist you in selecting the perfect fittings to match the unique demands of your piping system and its operating environment.
- Solutions-Oriented : EBY Fasteners is your partner in overcoming challenges. Whether you're dealing with corrosive environments, extreme temperatures, or strict regulatory requirements, we provide the high-performance alloy steel forged pipe fittings and expertise to keep your critical systems flowing safely and reliably
