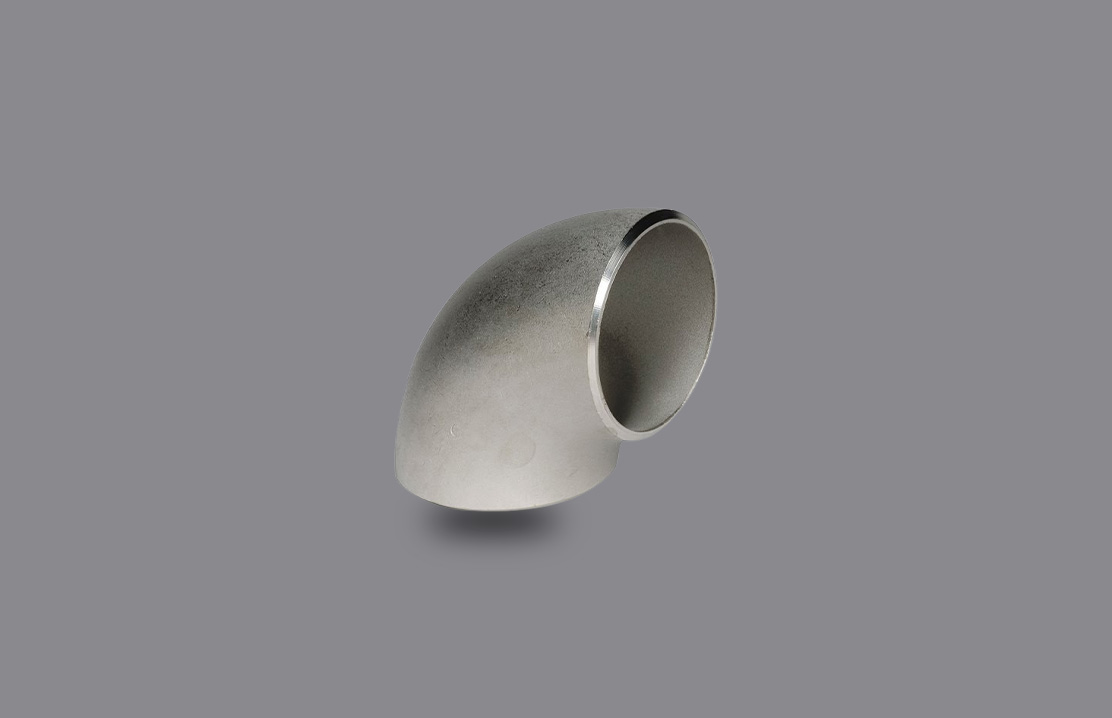

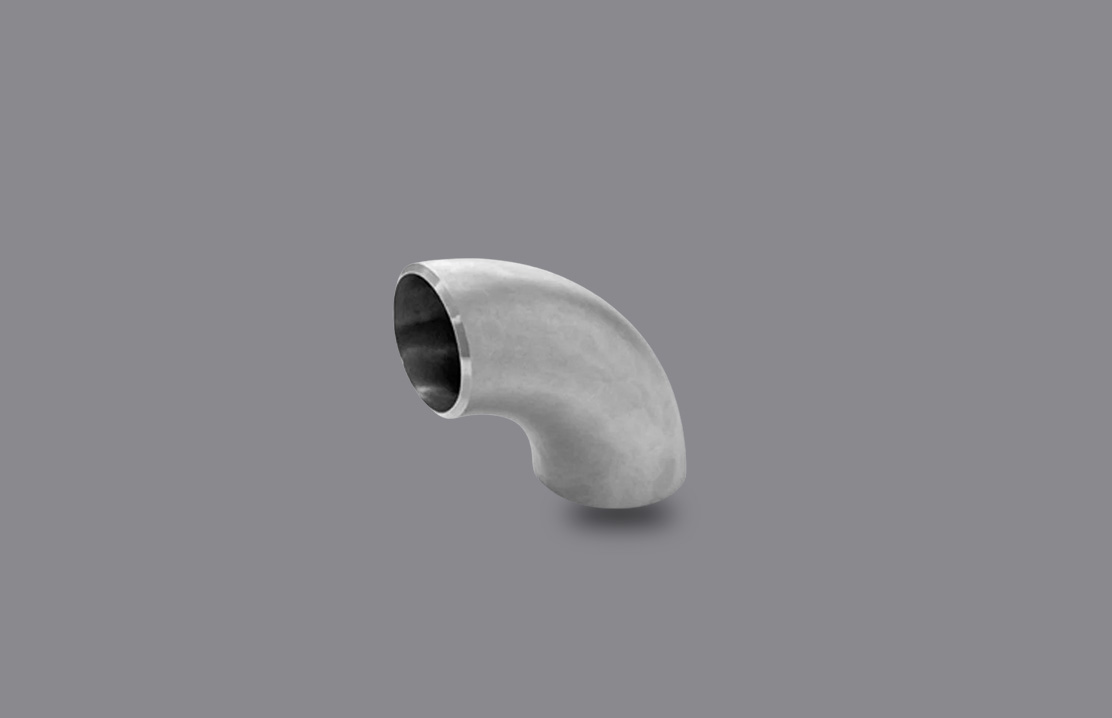

Alloy Steel 90-degree Elbow Outlet
For industrial applications where strength, durability, and resilience are essential, choose EBY Fasteners’ Alloy Steel 90-Degree Elbow Outlets. Engineered for demanding environments, these elbows offer superior performance in high-pressure, high-temperature, or potentially corrosive process lines. Benefit from our vast selection of alloy grades, connection types (socket-weld, butt-weld, threaded), and sizes to streamline your piping projects
EBY Fasteners’ Alloy Steel 90-Degree Elbow Outlets are manufactured to rigorous industry standards, ensuring dimensional accuracy, reliable connections, and compatibility across manufacturers. Count on these elbows for robust performance, leak-free operation, and optimized flow characteristics within your piping systems. Our knowledgeable team provides guidance to ensure you select the ideal outlet for your application
Whether you’re navigating the challenges of a refinery, chemical processing plant, power generation facility, offshore platform, or other industrial setting, EBY Fasteners’ Alloy Steel 90-Degree Elbow Outlets are ready to perform. Experience the difference of superior materials, meticulous manufacturing, and a commitment to long-term reliability within your critical piping systems. Contact us today to optimize your operations
Whether you’re navigating the challenges of a refinery, chemical processing plant, power generation facility, offshore platform, or other industrial setting, EBY Fasteners’ Alloy Steel 90-Degree Elbow Outlets are ready to perform. Experience the difference of superior materials, meticulous manufacturing, and a commitment to long-term reliability within your critical piping systems. Contact us today to optimize your operations
- Outlet Type : Screwed-Threaded 90 Elbow Outlet: This type of outlet features threads that allow it to be directly screwed onto a compatible pipe or fitting. Screwed connections offer several advantages, including easy installation, the potential for disassembly without cutting, and suitability for smaller diameter piping systems where welding might be less practical.
- ASTM Grade: ASTM A182 F1, F5, F9, F11, F22, F91 : This ASTM standard covers forged alloy steel fittings for high-temperature or high-pressure service. Each grade (F1, F5, etc.) offers a unique combination of properties:
- F1 & F5 : Prioritize strength, toughness, and moderate high-temperature capabilities.v
- F11 & F22 : Offer improved creep resistance (resistance to deformation at high temperature and stress) for more demanding applications.
- F9 & F91 : Provide further enhanced creep resistance, making them ideal for severe high-temperature service.
- Why This Combination Matters :
- Screwed Connections and High Pressures : Alloy steel, compared to basic carbon steel, offers the superior strength often required for threaded connections designed to handle high-pressure applications.
- High-Temperature Resilience : Specific alloy steel grades (F11, F22, F91) provide the necessary strength and temperature resistance for demanding industrial processes where screwed fittings offer installation or maintenance advantages.
- Material Compatibility : Selecting an outlet manufactured from an alloy steel grade that matches your pipe material ensures consistent properties across the system, minimizing potential vulnerabilities
- Value Ranges :
- Range (Butt-Weld or Socket Weld) : Indicates the standard pipe sizes (½" to 6") the fittings are designed to connect with. Precisely matching the fitting and pipe diameter is crucial for a secure, leak-free connection.
- Range (Screwed) : Indicates the available sizes (½" to 3") for threaded connections and the maximum pressure rating (up to 6000#). Screwed connections offer ease of installation and potential for disassembly.
- Standard : MSS SP-97, ASME B16.11: These standards provide comprehensive guidelines for dimensions, tolerances, pressure-temperature ratings, materials, and testing procedures. Adherence to standards ensures quality, consistency, and compatibility across manufacturers.
- Thickness : Schedules like SCH 5S, 10S, 40S, etc., represent standardized wall thicknesses. The schedule dictates the fitting's pressure handling capabilities. Select a schedule that aligns with, or exceeds, the maximum pressures your system will experience to ensure safety and prevent failures.
- Compatibility : Choosing the correct size, connection type, and standard ensures a seamless fit within your existing piping system.
- Performance : Selecting an appropriate schedule is crucial to guarantee the fitting can safely withstand the operating pressures of your system.
- Quality Assurance : Fittings manufactured to recognized standards provide consistency and predictable performance
- Enhanced Performance : Constructed from carefully selected alloy steels, these outlets offer superior strength, toughness, high-temperature resistance, and often enhanced corrosion resistance compared to basic carbon steel versions. This makes them ideal for demanding applications or harsh environments.
- 90-degree Branch : The angled outlet design allows you to change the direction of flow within your piping system smoothly and efficiently. This is essential for creating complex piping networks or navigating around obstacles.
- Connection Versatility : Availability in socket weld (SW), butt weld (BW), and threaded (SCRD) connections provides flexibility to integrate the elbow seamlessly into your piping system, using the most appropriate method.
- Pressure Handling : Manufactured to handle various pressure classes, these outlets can be matched to the specific pressure demands of your system, ensuring safe and reliable operation.
- Robust Construction : Alloy steel provides excellent durability and resilience, making these elbows well-suited for industrial settings where they might be exposed to challenging conditions or potentially corrosive fluids.
- Standards Compliance : Adherence to industry standards (MSS SP-97, ASME B16.11, etc.) guarantees compatibility, ensures predictable dimensional tolerances for easy installation, and provides peace of mind regarding the quality and performance of the outlet.
- Dimensional Precision : These outlets are manufactured with careful attention to detail, ensuring accurate dimensions and a consistent fit within your piping system. This simplifies the installation process and minimizes the risk of leaks
- Refinery & Petrochemical : Alloy steel 90-degree elbows are a vital component in the complex piping systems found within refineries and petrochemical plants. They're indispensable for creating bends in high-pressure lines, handling hot process fluids, and withstanding the potentially corrosive chemicals common in these environments. Specific alloy grades provide the necessary strength, temperature resistance, and corrosion resistance to ensure long-term reliability.
- Chemical : Chemical processing facilities rely heavily on alloy steel 90-degree elbows for building secure piping networks. These elbows facilitate the controlled flow of various chemicals, including those under pressure. When dealing with particularly aggressive chemicals, selecting alloy steel elbows with enhanced corrosion resistance ensures the piping system maintains its integrity and minimizes the risk of leaks or failures.
- Oil & Gas : The oil and gas industry utilizes alloy steel 90-degree elbows extensively in pipelines, gathering lines, and within processing facilities. They are essential for creating bends, directional changes, and facilitating connections between equipment. Their superior strength and potential for enhanced corrosion resistance make them well-suited for the demanding conditions encountered, both onshore and offshore.
- Power Plant : Within power plants, alloy steel 90-degree elbows find applications in high-pressure steam systems, where they withstand the combined forces of pressure and temperature. They may also be found in other process lines within the plant where elevated temperatures, high pressures, or potentially corrosive fluids are present, and a more durable solution than carbon steel is required.
- Offshore Platforms : The harsh marine environment demands robust components for the process piping systems found on offshore platforms. Alloy steel 90-degree elbows offer superior corrosion resistance compared to basic carbon steel, making them vital for reliable and leak-free piping connections. Specific alloy grades can provide exceptional resilience against the relentless effects of saltwater
Chemical Composition
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.05 - 0.15 |
| Manganese (Mn) | 0.30 - 0.65 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.025 max |
| Silicon (Si) | 0.15 - 0.35 |
| Chromium (Cr) | 0.80 - 1.10 |
| Molybdenum (Mo) | 0.15 - 0.25 |
