SS / duplex & super duplex Flanges
SS / Duplex & Super Duplex Flanges deliver superior strength and exceptional resistance to corrosion for the most challenging piping systems. Their robust construction ensures leak-proof connections and long-term reliability, even when subjected to aggressive chemicals, extreme temperatures, and the relentless assault of saltwater. Crafted from stainless steel, duplex, or super duplex alloys, these flanges are the backbone of critical piping networks in offshore settings, chemical processing facilities, and demanding coastal projects. Select SS / Duplex & Super Duplex flanges when system integrity and resilience are non-negotiable
Versatility of SS / duplex & super duplex Flanges
Unmatched Corrosion Resistance and Versatility EBY Fasteners’ SS / Duplex & Super Duplex Flanges offer unsurpassed strength and adaptability for critical piping networks. Crafted from specialized alloys, these flanges excel in demanding environments, delivering exceptional performance in the presence of aggressive chemicals, extreme temperatures, and relentless marine conditions

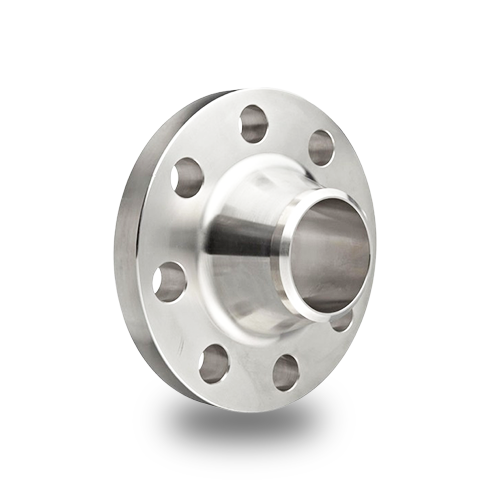

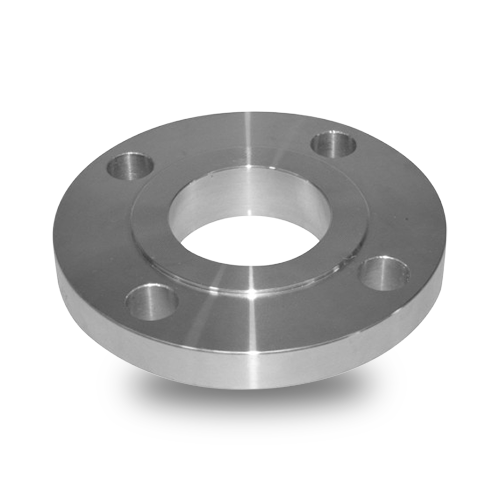

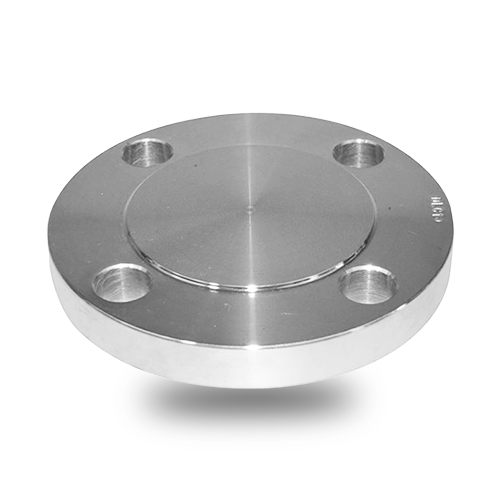

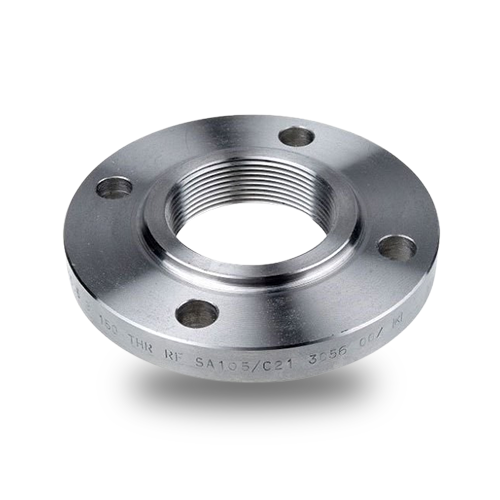

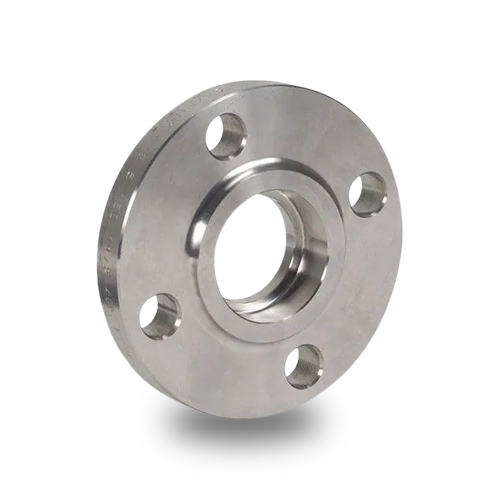

- Types of SS / Duplex & Super Duplex Flanges : Build reliable and versatile piping systems with a comprehensive selection of SS / Duplex & Super Duplex flanges. Choose from slip-on, blind, weld neck, lap joint, threaded, socket-weld, and other flange types to fit your precise requirements. Custom designs are also available, ensuring a perfect solution for any specialized project.
- Enhanced Performance : SS / Duplex & Super Duplex Flanges significantly enhance system performance. They create robust, leak-tight connections essential for maintaining pressure integrity and preventing costly failures. Their superior corrosion resistance safeguards against degradation caused by harsh environments, reducing maintenance costs and ensuring long-term system longevity.
- Adaptability : Discover the flexibility of SS / Duplex & Super Duplex Flanges. Their various styles, pressure classes, and size ranges empower you to tackle diverse piping configurations, from intricate layouts to large-diameter process lines. For unique needs, custom fabrication services guarantee a seamless fit with your existing piping and project requirements
Technical Specifications
- ASTM / ASME A182 : The cornerstone standard for forged alloy steel materials. This ensures the correct chemical composition and mechanical strength properties of the stainless steel, duplex, and super duplex grades used to manufacture these flanges.
- ASTM / ASME A403 : Relevant for wrought austenitic stainless steel flanges, a common material choice due to their corrosion resistance. This standard addresses their specific properties and requirements.
- ASME B16.5 : This standard sets forth the dimensional standards and tolerances for pipe flanges and flanged fittings. It ensures compatibility between flanges of various sizes, pressure classes, and materials, including SS / Duplex & Super Duplex Flanges.
- MSS SP-44 : This standard focuses specifically on steel pipeline flanges. It provides additional details on flange types, facings, dimensions, and quality requirements relevant to SS / Duplex & Super Duplex Flanges.
- Specific Grades (F304/L, F316/L, etc.) : SS / Duplex & Super Duplex Flanges are available in diverse grades of stainless steel. Each grade, with its unique chemical composition, offers distinct advantages in strength, corrosion resistance, and suitability for specific temperature ranges. Careful grade selection is crucial for optimal performance and ensuring the flange meets your system's demands
Customized SS / Duplex & Super Duplex Flanges as per Project's Specific Requirements
- Stainless Steel Base : SS / Duplex & Super Duplex Flanges start with a foundation of stainless steel alloys. Iron (Fe) remains the primary element, while Chromium (Cr) is essential for corrosion resistance.
- The Stainless Steel Spectrum : Choose the right grade for your needs. Austenitic grades (like F304/L) offer general corrosion resistance. Duplex and super duplex options excel in extreme environments, providing superior strength and specialized corrosion resistance.
- Alloying Fine-Tuning : Specific elements refine performance. Molybdenum (Mo) combats pitting and localized corrosion, while Nickel (Ni) boosts toughness. In super duplex grades, nitrogen (N) becomes crucial for extra strength and localized corrosion resistance.
- Customization : Precise control over alloy composition allows manufacturers to fine-tune SS / Duplex & Super Duplex Flanges to your project's requirements. Whether it's extreme strength in a marine environment or specialized chemical resistance, the right alloying balance ensures optimal flange performance
- Strength : SS / Duplex & Super Duplex Flanges offer excellent strength. Their tensile strength withstands internal system pressures, while their yield strength ensures they maintain shape under load, creating leak-tight seals. Duplex and super duplex grades often boast superior strength compared to traditional austenitic stainless steels.
- Toughness : These flanges are tough, able to absorb impacts and vibrations without compromising their integrity. This resilience is essential in applications where dynamic stresses are a factor.
- Hardness : Alloy composition allows for tailoring the hardness of SS / Duplex & Super Duplex flanges. Increased hardness, where needed, offers wear resistance against abrasive elements that might be present within the flow.
- Flange Facings : The flange face finish is key for a leak-tight seal. These flanges come with smooth, serrated, or raised faces, chosen to match the gasket type and optimize sealing performance for the application.
- Dimensional Tolerances : Standards like ASME B16.5 and MSS SP-44 ensure precise dimensions in SS / Duplex & Super Duplex Flanges. This guarantees compatibility with other system components and simplifies installation
- Pressure Classes : SS / Duplex & Super Duplex Flanges come in standard pressure classes like 150 LBS, 300 LBS, 600 LBS, and potentially even higher. These classes indicate the maximum working pressure the flange can reliably handle at a given temperature.
- Importance of Matching Ratings : It's essential to choose flanges with pressure ratings that exceed your piping system's maximum operating pressure. This safety margin ensures a robust connection and helps prevent leaks, failures, and potential damage due to pressure fluctuations.
- Standards : Standards like ASME B16.5 and ASME B16.34 provide detailed pressure-temperature ratings for different flange classes and materials. Always reference these standards to ensure you select SS / Duplex & Super Duplex Flanges that can safely withstand the demands of your specific system.
- Additional Considerations : While pressure class is key, the specific alloy grade also matters. Duplex and super duplex flanges often boast higher pressure ratings at a given temperature compared to some common austenitic stainless steel grades
- Key Standards Organizations :
- ASTM International : Develops crucial standards defining the materials, properties, and testing requirements for stainless steel, duplex, and super duplex alloys used in flange manufacturing.
- ASME (American Society of Mechanical Engineers) : Establishes standards that ensure dimensional compatibility and pressure-handling capabilities of flanges, essential for their integration with piping systems.
- MSS (Manufacturers Standardization Society) : Provides standards specific to flanges and related components, ensuring dimensional precision, reliability, and markings across different manufacturers.
- Important Standards for SS / Duplex & Super Duplex Flanges :
- ASTM A182 : The cornerstone standard for forged alloy steel materials, including stainless, duplex, and super duplex grades. It dictates chemical composition and mechanical strength requirements.
- ASTM A403 : Addresses properties and requirements specific to wrought austenitic stainless steel flanges, a common material type.
- ASME B16.5 : Outlines dimensional standards and tolerances for pipe flanges and flanged fittings, including SS / Duplex & Super Duplex types. This ensures compatibility across different sizes, pressure classes, and manufacturers.
- MSS SP-44 : This standard focuses on steel pipeline flanges. It provides additional details on dimensions, flange types, facings, and quality requirements relevant to SS / Duplex & Super Duplex Flanges
The EBY Fasteners Advantage
- Quality and Precision : EBY Fasteners' SS / Duplex & Super Duplex Flanges are manufactured with unwavering attention to detail, exceeding the requirements of rigorous industry standards (ASTM, ASME, MSS). This ensures superior dimensional accuracy, exceptional corrosion resistance, and leak-tight performance essential for reliable operation within demanding piping systems.
- Selection and Support : Discover a comprehensive range of SS / Duplex & Super Duplex Flanges in various styles, pressure classes, sizes, and alloy compositions. Our knowledgeable team offers guidance in selecting the optimal flange configuration to meet the precise needs of your piping system and operating conditions.
- Solutions-Oriented : EBY Fasteners is your trusted source for overcoming critical piping challenges. Our high-performance flanges and expert technical support help you conquer aggressive chemicals, extreme temperatures, marine environments, and unique system configurations. We are committed to ensuring the safety and long-term success of your infrastructure projects
