Leading Manufacturer and Exporter of Superior Orifice Flange
Superior Quality Orifice Flange manufactured for reliability and Efficiency
In the world of piping systems, the role of flanges is crucial . Among the various types of flanges, Orifice Flanges hold a special place due to their unique functionality. EBY Fittings, a trusted name in the industry, offers high-quality Orifice Flanges that are worth considering for your needs

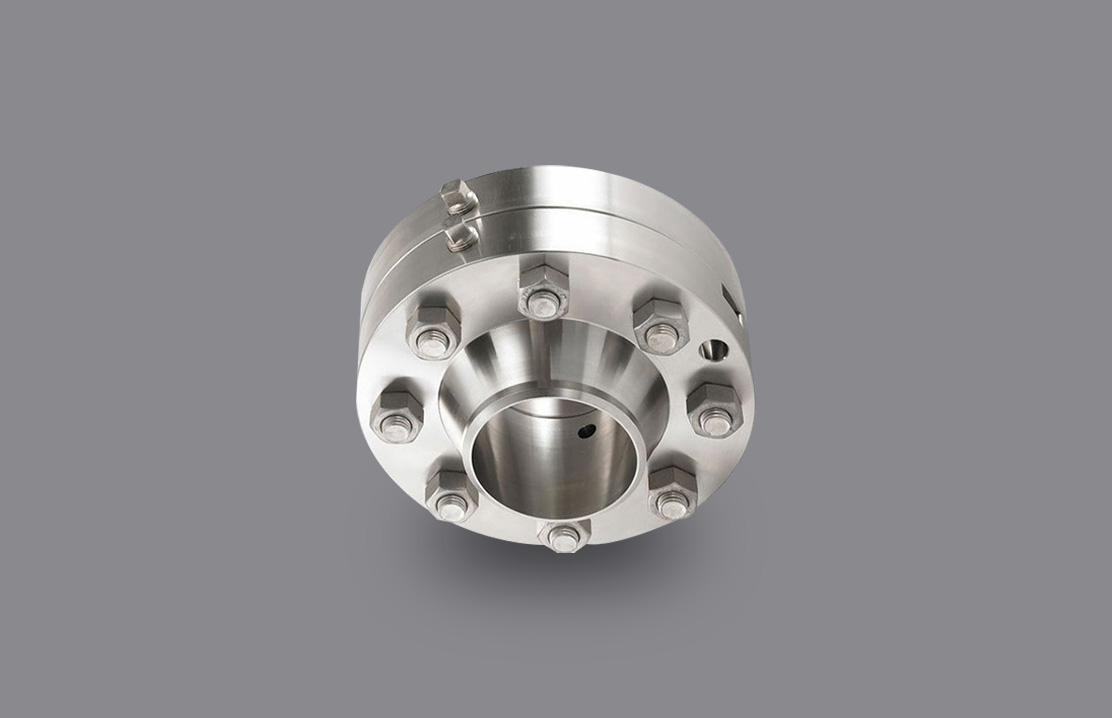

Our Orifice Flanges are crafted with precision and made from high-grade materials. This ensures their durability and ability to withstand challenging conditions, making them a reliable choice for various industrial applications.Our Orifice Flanges are designed for accurate flow measurement in piping systems. They come with pairs of pressure “Tappings”, primarily used with orifice meters for the purpose of measuring the flow rate of either liquids or gases in the respective pipeline
These flanges are versatile and can be used across a wide range of industries, including oil and gas, petrochemical, and power generation industries. The design is compatible with different piping systems, making it a flexible choice. Our Orifice Flanges are designed for easy installation. Their user-friendly design reduces the time and effort required for installation, making the process more efficient
These flanges are versatile and can be used across a wide range of industries, including oil and gas, petrochemical, and power generation industries. The design is compatible with different piping systems, making it a flexible choice. Our Orifice Flanges are designed for easy installation. Their user-friendly design reduces the time and effort required for installation, making the process more efficient
- Carbon Steel : This is a popular choice for many flanges due to its strength and durability. It can withstand high pressures and temperatures, making it suitable for a wide range of applications
- Stainless Steel : Known for its corrosion resistance, stainless steel is often used in applications where the flange will be exposed to corrosive substances
- Alloy Steel : This material is used when additional mechanical properties, such as improved tensile strength or resistance to wear, are required
- Nickel Alloys : These are used in applications that require excellent corrosion resistance and can withstand extreme temperatures
- Duplex Steel : This is used in applications that require high strength and excellent corrosion resistance
- Inconel : This is a type of superalloy that is highly resistant to heat and corrosion, making it suitable for extreme environments
- Hastelloy : This is another type of superalloy that is known for its excellent resistance to corrosion and high temperatures
- Wide Range : The Orifice Flange is available in a range from 150 to 2500, catering to a variety of needs and applications
- Variety of Sizes : It comes in sizes from ½ inch to 24 inch, offering flexibility for different piping requirements
- Rust Proof : The Orifice Flange is rust-proof, ensuring longevity and reliability even in harsh environments
- High-Temperature and Pressure Resistance : It can withstand high temperatures and pressures, making it suitable for demanding industrial applications
- Weather Proof : Our Orifice Flange is weather-proof, ensuring its performance is not affected by external environmental conditions
- Types : It is available in two types - Raised face Orifice flanges and Ring Type Joint Orifice Flanges, providing options to choose based on specific needs
The Orifice Flange by EBY Fittings find applications across a wide range of industries due to its versatility and robustness. The key industries where it is used are :
- Chemical Industry : Both heavy and light chemical industries utilize our flanges for controlling and measuring the flow of various chemicals
- Steel Industry : The steel industry uses our flanges in their processes, especially where precise flow measurements are required
- Paper Industry : In the paper industry, our flanges are used in various stages of paper production and waste treatment
- Nuclear Industry : The nuclear industry uses our flanges for precise flow measurements and control in their complex processes
- Petrochemical Industry : These flanges are widely used in the petrochemical industry for controlling and measuring the flow of various petrochemicals
- Sewage Treatment : Our flanges are perfectly suitable for use in sewage treatment plants, where they help in controlling and measuring the flow of sewage
- Water Treatment and Distribution : In water treatment plants and distribution systems, these flanges are used to measure water consumption and detect leakages
- Power Generation : In power generation plants, our flanges are used in various processes where flow control is crucial
- Oil Production and Refining : These flanges are used in oil production and refining processes to measure and control the flow of oil
- Gas Processing and Transmission : Our flanges are used in gas processing plants and transmission systems to measure and control the flow of gas
Specifications
| Specification | Description |
|---|---|
| Range | 150 to 2500 |
| Size | ½ inch to 24 inch |
| Features | Rust Proof, Available in variety of sizes, Resistance to high temperature and pressure, Weather proof |
| Types | Ring Type Joint Orifice Flanges, Raised face Orifice Flanges |
Grades
| Material | Grade |
|---|---|
| Stainless Steel | ASTM A 182, A 240 F 304, 904L, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H |
| Carbon Steel | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65/70 |
| Alloy Steel | ASTM / ASME A/SA 182 and A 387 F91, F1, F5, F9, F11, F12, F22 |
| Duplex Steel | ASTM / ASME A/SA 182 F 61, F 44, F 45, F51, F 53, F 55, F 60 |
| Super Duplex | ASTM / ASME A/SA 182 F 61, F 44, F 45, F51, F 53, F 55, F 60 |
| Low Temperature | ASTM A350 LF6, LF2, LF3 |
| High Yield | ASTM A694 F70, F42, F52, F60, F65 |
| Nickel Alloys | ASTM SB564, SB160, SB472, SB162 |
| Copper Alloys | ASTM SB 61 , SB62 , SB151 , SB152 |
| Other Grades | Bronze, Brass, Cupro Nickel, Titanium, Hastelloy, Inconel, Monel |
Certifications
The key certifications we have received are :
- ISO 9001:2015 : This certification proves that we have implemented a quality management system in which all processes and procedures have been carefully designed and quality-tested according to international standards
- EIL (Engineers India Limited) : EIL certification is a testament to our quality and reliability, ensuring that it meets the stringent standards set by Engineers India Limited
- IBR (Indian Boiler Regulations) : The IBR certification signifies that our Orifice Flange complies with the standards and regulations set by the Indian Boiler Regulations, ensuring its safety and performance
- ONGC (Oil and Natural Gas Corporation) : Being certified by ONGC means that our product meets the high standards required for use in the oil and natural gas industry
- NORSOK M650 : This certification from NORSOK, the Norwegian sector’s initiative to increase safety and efficiency in petroleum activities, demonstrates that our Orifice Flange meets the rigorous requirements of the standard M650, which is specifically designed for manufacturers of special materials
Why Choose Orifice Flange by EBY Fittings
Choosing the Orifice Flange by EBY Fittings is a decision that brings numerous benefits. Some reasons why it stands out are :
- Quality Assurance : Our Orifice Flange is certified by ISO 9001:2015, EIL, IBR, ONGC, and NORSOK M650, ensuring its high quality and reliability
- Versatility : With a wide range of sizes and types available, it offers flexibility to cater to various needs and applications
- Durability : Our Orifice flange is rust-proof and weather-proof, ensuring its longevity even in harsh environments
- High Performance : Our Orifice Flange can withstand high temperatures and pressures, making it suitable for demanding industrial applications
- Wide Applications : Our Orifice Flange finds its applications across a wide range of industries, including chemical, steel, paper, nuclear, petrochemical, sewage treatment, water treatment and distribution, power generation, oil production and refining, and gas processing and transmission
- Variety of Grades : Our Orifice Flanges are available in a variety of grades including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex, Low Temperature, High Yield, Nickel Alloys, Copper Alloys, and other grades
