Alloy Steel Branch Outlets
Take control of your process flows with EBY Fasteners' robust and reliable Alloy Steel Branch Outlets. These meticulously manufactured components are designed for superior performance and seamless integration into demanding piping systems. Benefit from the enhanced strength, temperature resistance, and corrosion resistance that comes with expertly chosen alloy steel compositions
Versatility of Alloy Steel Branch Outlets

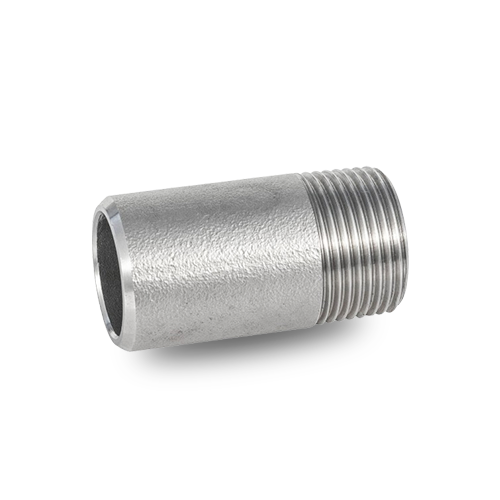

Available in various connection types (Buttwelfing Outlet, Nipple Outlet, Socketweld Outlet, Threaded Outlet), they provide robust and adaptable solutions for creating branches in piping systems. The superior strength, temperature resistance, and corrosion resistance offered by different alloy grades make them suitable for a wide range of applications. These outlets can withstand high pressures, harsh chemicals, and extreme temperatures, making them indispensable in industries like refineries, chemical plants, power generation, and offshore operations

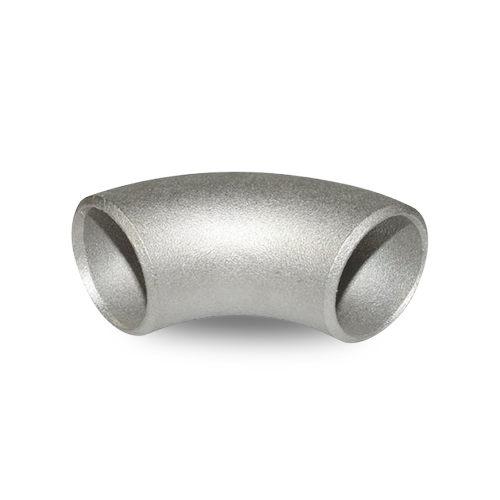

- Types of Branch Connections : Similar to carbon steel, alloy steel branch outlets come in various forms to suit different connection needs. Buttwelding Outlet provides robust connections for demanding applications.. Socketweld Outlet allows for simple installation and potential disassembly. Threaded Outlets introduce flexibility with threaded connections. Elbow Outlet combines a branch with a change in flow direction, streamlining piping designs.
- Enhanced Performance : The key advantage of alloy steel branch outlets lies in their superior performance. They offer exceptional strength, toughness, and wear resistance compared to basic carbon steel. Specific alloy grades can handle high temperatures in process lines and resist corrosion from chemicals or harsh environments.
- Adaptability : Alloy steel branch outlet comes in a wide range of ASTM grades, each with properties tailored to meet specific needs for temperature, pressure, and corrosion resistance. They are also manufactured in various standard pipe sizes and pressure classes, ensuring they can adapt to a diverse range of piping systems
Technical Specifications
EBY Fasteners adheres to the following industry standards for Alloy steel branch outlets
- ASTM / ASME A182 : This comprehensive standard covers forged or rolled alloy steel pipe flanges, fittings, valves, and other parts designed to withstand high temperatures or high pressures.
- ASTM / ASME A335 : This standard focuses specifically on seamless alloy steel pipe constructed from ferritic steels (which contain specific iron and alloying element combinations). These pipes are ideal for high-temperature applications within various industries.
- ASTM/ASME A691 : This standard covers pipe made from chrome and chrome-molybdenum alloy steels, offering a balance of high-temperature strength and corrosion resistance.
- Specific Grades (P1, P5, P91, 1 CR, 5 CR, etc.) : These grades represent unique chemical compositions, resulting in a spectrum of mechanical properties. The numbers often indicate increasing chromium content (which enhances corrosion resistance) and increasing creep strength (ability to resist deformation under high temperature and stress). Selecting the appropriate grade is crucial
Customized Alloy Steel Branch Outlets as per project's specific requirements
- Iron (Fe) : Iron (Fe) forms the foundation of alloy steel branch outlets. It provides the primary structure of the alloy. While pure iron is relatively soft, careful additions of carbon and other alloying elements transform it into a material with the strength, toughness, and specialized properties essential for demanding industrial piping applications.
- Carbon (C) : The primary strengthening element in steel. Carbon content is carefully controlled to achieve the desired balance of strength, hardness, and ductility (ability to deform without breaking).
- Alloying Elements : Alloying elements are the key to the special properties of alloy steels. Common additions include chromium (Cr) for corrosion resistance, high-temperature strength, and hardenability; molybdenum (Mo) for strength, toughness, and creep resistance; and nickel (Ni) for toughness, hardenability, and low-temperature performance. Other elements like vanadium, manganese, and silicon may be added in smaller amounts for specific benefits
- Strength : Alloy steels offer superior strength compared to carbon steel. This includes both tensile strength, allowing them to withstand high pressures and resist breaking, and yield strength, ensuring they maintain their shape under load. These qualities are essential for piping systems operating under high pressure or subject to external forces, making alloy steel branch outlets crucial for maintaining system integrity.
- Toughness : This refers to the ability of the material to resist fracture and absorb energy during impact or sudden loads. Alloy steels have enhanced toughness, making them less brittle than carbon steel. This offers protection against unexpected failures or damage caused by shock or vibration within the piping system.
- Hardness : Alloy steels can be formulated to achieve various levels of hardness. This measures the material's resistance to surface indentation and wear. Increased hardness provides protection in applications where the outlet may be exposed to abrasive fluids or where minimizing wear over time is essential to maintain performance.
- Dimensional Tolerances : Alloy Steel Branch Outlets are manufactured to adhere to strict dimensional tolerances outlined in standards such as ASME B16.9, MSS SP-97, or BS 3799. These standards dictate precise limits for dimensions including outlet diameter, length, wall thickness, and thread specifications. Adhering to these tolerances ensures a proper fit, secure connections, and compatibility between outlets and other piping components within your system
- Pressure Classes : Alloy steel branch outlets are available in common pressure classes like 3000 LBS, 6000 LBS, and 9000 LBS. These numbers indicate the nominal pressure the outlet can withstand at a specific temperature.
- Importance of Matching Ratings : It's crucial to select an alloy steel branch outlet with a pressure class that exceeds the maximum operating pressure of your piping system. This ensures safe operation and prevents leaks or failures due to excessive pressure.
- Standards : Recognized standards like ASME B16.11 provide guidelines for pressure-temperature ratings of different classes and materials. Referencing these standards ensures you select the appropriate outlet for your application
- Key Standards Organizations :
- ASTM International : Creates a wide range of standards pertaining to the mechanical testing and characteristics of items made of alloy steel.
- ASME : American Society of Mechanical Engineers: Specializes in parts for pipelines, pressure vessels, and associated systems. include requirements for mechanical properties in the specifications.
- International Organization for Standardization (ISO) : They are responsible for developing worldwide standards, including those pertaining to steel's mechanical testing.
- Important ASTM Standards for Mechanical Properties :
- API 600, API 602 : May be relevant for certain outlet types, particularly those used in high-pressure oil and gas applications.
- BS 3799 : Specification for steel pipe fittings, screwed and socket-welding for the petroleum industry.
- Mechanical Properties in Branch Outlet Standards :
- MSS SP-79 : Specifically covers socket-welding reducer inserts.
- MSS SP-95 : Covers swage nipples and bull plugs.
- MSS SP-97 : Covers integral reinforced forged branch outlet fittings – socket welding, threaded, and buttwelding ends
The EBY Fasteners Advantage
- Quality and Precision : Our Alloy Steel Branch Outlets are manufactured to rigorous industry standards, ensuring dimensional accuracy, reliable connections, and compatibility with other components within your system. This simplifies installation and guarantees optimal flow characteristics.
- Selection and Support : We offer an extensive selection of Alloy Steel Branch Outlets in various sizes, pressure ratings, connection types, and alloy grades. Our knowledgeable team helps guide you in selecting the optimal outlet to match the specific requirements of your piping system and operating conditions.
- Solutions-Oriented : Whether you face harsh environments, demanding process lines, or compliance concerns, EBY Fasteners is your trusted partner. We provide solutions to ensure the long-term integrity, efficiency, and safety of your critical piping systems
